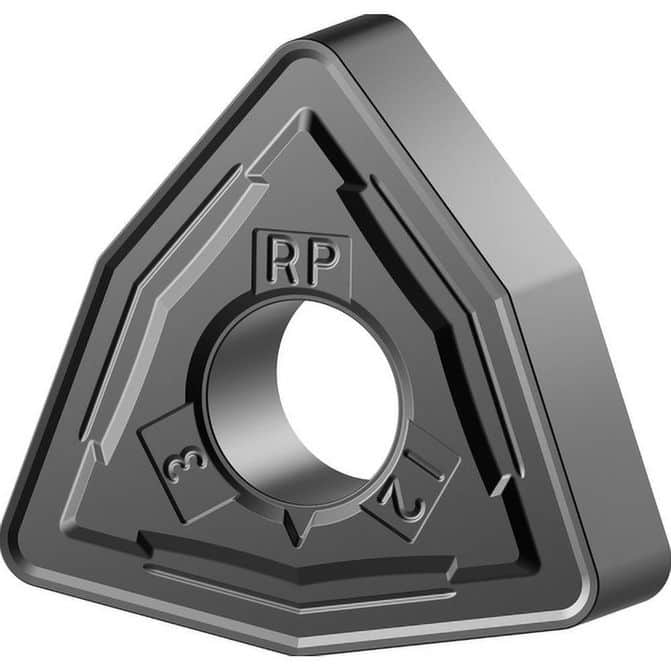

Manufacturer Part Number: 6817948|Relief Angle|0Corner Radius (mm)|1.20Corner Radius (Inch)|3/64Corner Radius (Decimal Inch)|0.0469Included Angle|80degreeManufacturer Grade|KCS10BCoating/Finish|AlTiNWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|3/16Insert Thickness (Decimal Inch)|0.1875Series|KENLOCInscribed Circle (Inch)|1/2Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|TrigonChipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|6Insert Shape Code|WSingle Or Double End|Hole Diameter (Decimal Inch)|0.2031Hole Diameter (Mm) ( - 0 Decimals)|Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|0.2278Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; PinWidth (Inch)|Clearance Code|NTolerance Code|MCoating Process|PVDLength Range (Decimal Inch)|0.6500 - 0.7000Rake|NegativeInsert Length (mm)|12.70Insert Length (Decimal Inch)|0.6840Insert Length (Inch)|1/2Primary Workpiece Material|Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|M; SSecondary Workpiece Material|Secondary Workpiece Material Code|MAnsi Code|Iso Code|WNMG080412RPStandards|ANSI; ISOManufacturers Catalog Number|6817948Cutting Direction|Material Grade|S10Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Lead Angle|Coating Classification|PVDChip Breaker|RPRake Angle|5Cutting Edge Style|Chamfered & HonedStyle|Industry Standard Number|WNMG433RPWidth (Decimal Inch - 4 Decimals)|0.6840inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|WNMGInsert Size Code|433
