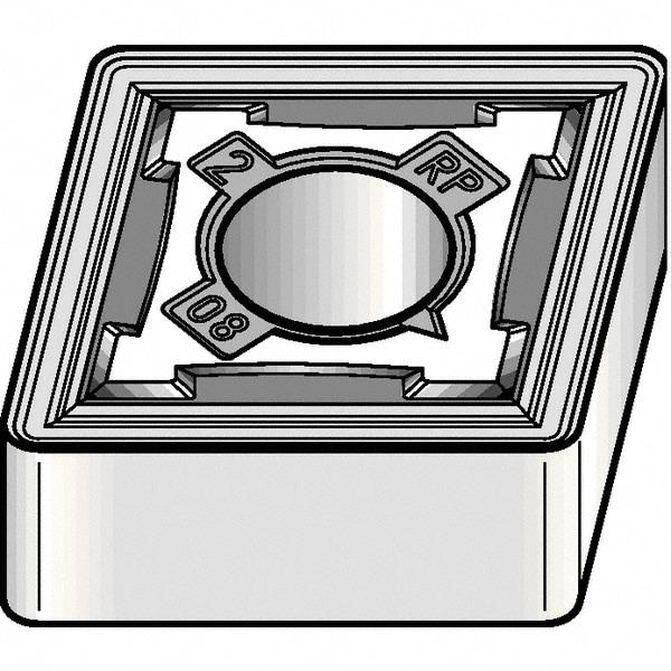

Manufacturer Part Number: 5413174|Relief Angle|0Corner Radius (mm)|Corner Radius (Inch)|3/64Corner Radius (Decimal Inch)|0.0469Included Angle|80degreeManufacturer Grade|KCP10BCoating/Finish|TiCN; Al2O3; TiOCNWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|3/16Insert Thickness (Decimal Inch)|0.1875Series|KENLOCInscribed Circle (Inch)|1/2Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|Diamond 80Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|4Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.2031Hole Diameter (Mm) ( - 0 Decimals)|Maximum Depth of Cut (mm)|6.35Maximum Depth of Cut (Decimal Inch)|0.2500Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; PinWidth (Inch)|1/2Clearance Code|NTolerance Code|MCoating Process|MTCVDLength Range (Decimal Inch)|0.5000 - 0.6000Rake|NegativeInsert Length (mm)|Insert Length (Decimal Inch)|0.5077Insert Length (Inch)|Primary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|CNMG120412RPStandards|ANSI; ISOManufacturers Catalog Number|5413174Cutting Direction|Material Grade|C3; C7Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Multilayer CoatingLead Angle|Coating Classification|CVDChip Breaker|RPRake Angle|5Cutting Edge Style|Chamfered & HonedStyle|Industry Standard Number|CNMG433RPWidth (Decimal Inch - 4 Decimals)|0.5Width (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CNMGInsert Size Code|433
