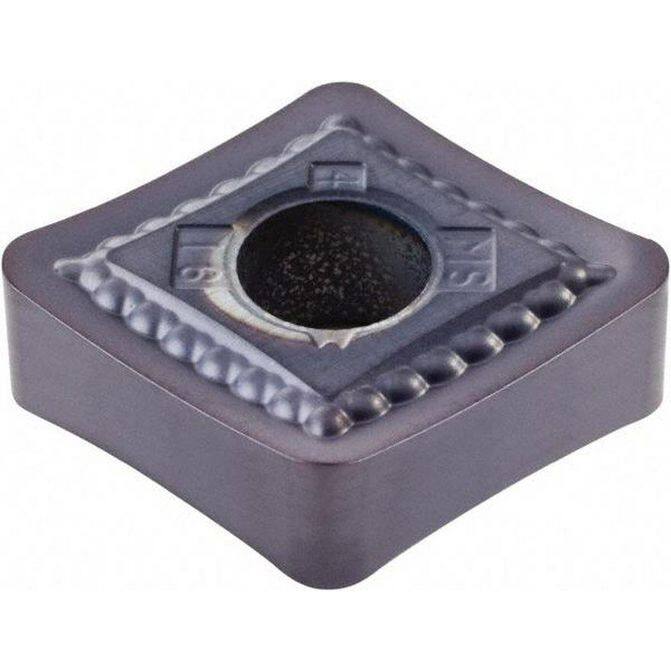

Manufacturer Part Number: 4050458|Relief Angle|0Corner Radius (mm)|Corner Radius (Inch)|1/16Corner Radius (Decimal Inch)|0.0625Included Angle|80degreeManufacturer Grade|KCU25Coating/Finish|AlTiNWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|3/16Insert Thickness (Decimal Inch)|0.1875Series|KENLOCInscribed Circle (Inch)|1/2Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|Diamond 80Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|4Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.2031Hole Diameter (Mm) ( - 0 Decimals)|5.16Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|0.1691Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; PinWidth (Inch)|1/2inClearance Code|NTolerance Code|MCoating Process|PVDLength Range (Decimal Inch)|0.5000 - 0.6000Rake|NegativeInsert Length (mm)|12.90Insert Length (Decimal Inch)|0.5077Insert Length (Inch)|Primary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|CNMG120416MSStandards|ANSI; ISOManufacturers Catalog Number|4050458Cutting Direction|Material Grade|C2; C6Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Lead Angle|Coating Classification|PVDChip Breaker|MSRake Angle|13Cutting Edge Style|HonedStyle|Industry Standard Number|CNMG434MSWidth (Decimal Inch - 4 Decimals)|0.5000inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CNMGInsert Size Code|434
