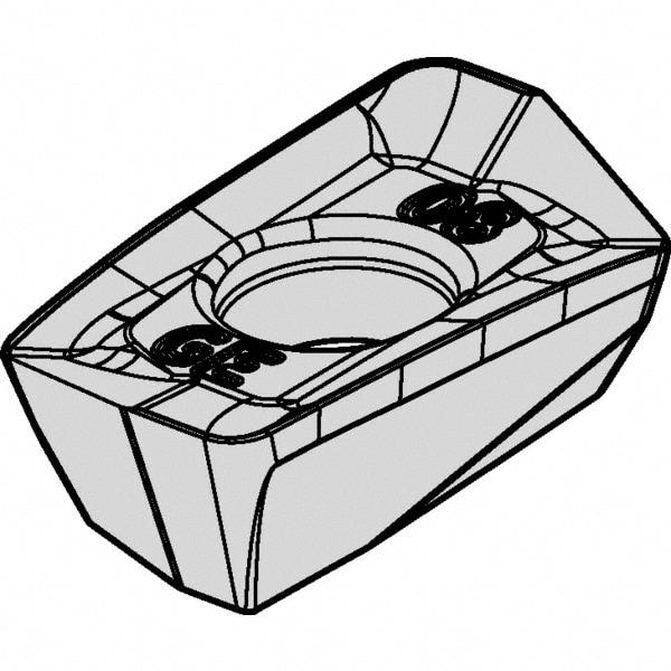

Manufacturer Part Number: 5545214|Insert Style|EDPTInsert Size|10Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|17/64Manufacturer Grade|KCPM40Corner Radius (Decimal Inch)|0.0310Corner Radius (mm)|0.79Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1480Thickness (mm)|Coating/Finish|TiAlN; AlCrNRelief Angle|15Maximum Depth of Cut (Decimal Inch)|0.2533Maximum Depth of Cut (mm)|Insert Size Code|10T308Material Grade|Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2660Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.4500 to 0.5000Insert Hand|Right HandSeries|EDPTCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|EP1008EHDIso Code|EDPT10T308PDERHDStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|13Cutting Edge Style|HonedManufacturers Catalog Number|EDPT10T308PDERHDCutter Series Compatibility|Mill 1-10Chip Breaker|HDCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|70Length (mm)|Width (Decimal Inch - 4 Decimals)|0.2650Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.4740System Of Measurement|
