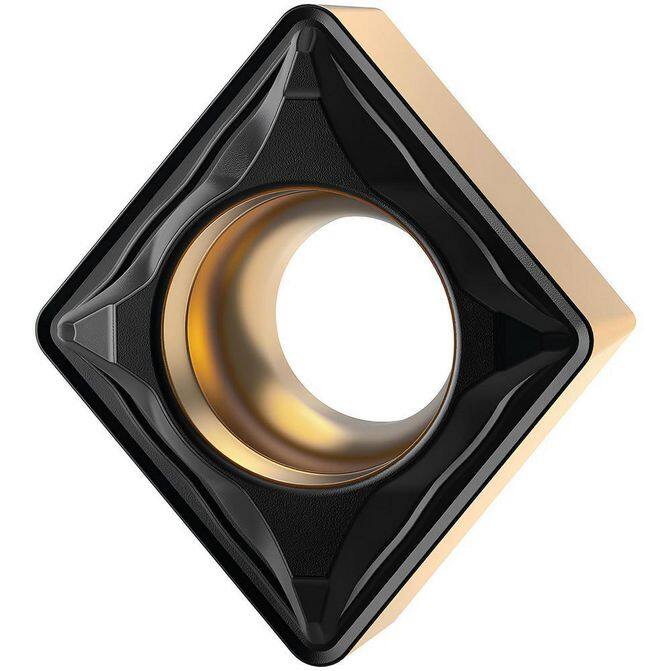

Manufacturer Part Number: 7026531|Relief Angle|7Corner Radius (mm)|Corner Radius (Inch)|1/128Corner Radius (Decimal Inch)|0.0079Included Angle|80Manufacturer Grade|KCP25CCoating/Finish|TiN; Al2O3; TiCNWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|5/32Insert Thickness (Decimal Inch)|0.1563Series|Screw-OnInscribed Circle (Inch)|3/8Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|DiamondChipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|2Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.1732Hole Diameter (Mm) ( - 0 Decimals)|Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|0.1268Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|ScrewWidth (Inch)|3/8Clearance Code|CTolerance Code|MCoating Process|CVDLength Range (Decimal Inch)|0.3000 - 0.4000Rake|PositiveInsert Length (mm)|Insert Length (Decimal Inch)|0.3808Insert Length (Inch)|Primary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|CCMT09T302FPStandards|ANSI; ISOManufacturers Catalog Number|7026531Cutting Direction|Material Grade|Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Multilayer CoatingLead Angle|Coating Classification|CVDChip Breaker|FPRake Angle|15Cutting Edge Style|HonedStyle|Industry Standard Number|CCMT32505FPWidth (Decimal Inch - 4 Decimals)|0.375Width (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CCMTInsert Size Code|32505
