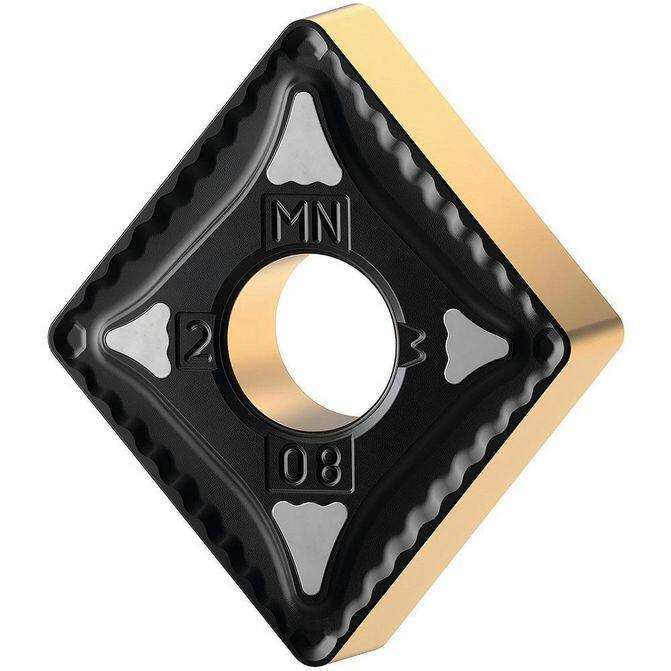

Manufacturer Part Number: 7026407|Relief Angle|0Corner Radius (mm)|Corner Radius (Inch)|1/32Corner Radius (Decimal Inch)|0.0313Included Angle|80Manufacturer Grade|KCP25CCoating/Finish|TiN; Al2O3; TiCNWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|1/4Insert Thickness (Decimal Inch)|0.2500Series|KENLOCInscribed Circle (Inch)|3/4Inscribed Circle (Decimal Inch)|0.7500Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|DiamondChipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|4Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.3125Hole Diameter (Mm) ( - 0 Decimals)|Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|0.2536Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; PinWidth (Inch)|3/4Clearance Code|NTolerance Code|MCoating Process|CVDLength Range (Decimal Inch)|0.7000 - 10.0000Rake|NegativeInsert Length (mm)|19.34Insert Length (Decimal Inch)|0.7616Insert Length (Inch)|Primary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|CNMG190608MNStandards|ANSI; ISOManufacturers Catalog Number|7026407Cutting Direction|Material Grade|Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Multilayer CoatingLead Angle|Coating Classification|CVDChip Breaker|MNRake Angle|0Cutting Edge Style|Chamfered & HonedStyle|Industry Standard Number|CNMG642MNWidth (Decimal Inch - 4 Decimals)|0.75Width (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CNMGInsert Size Code|642
