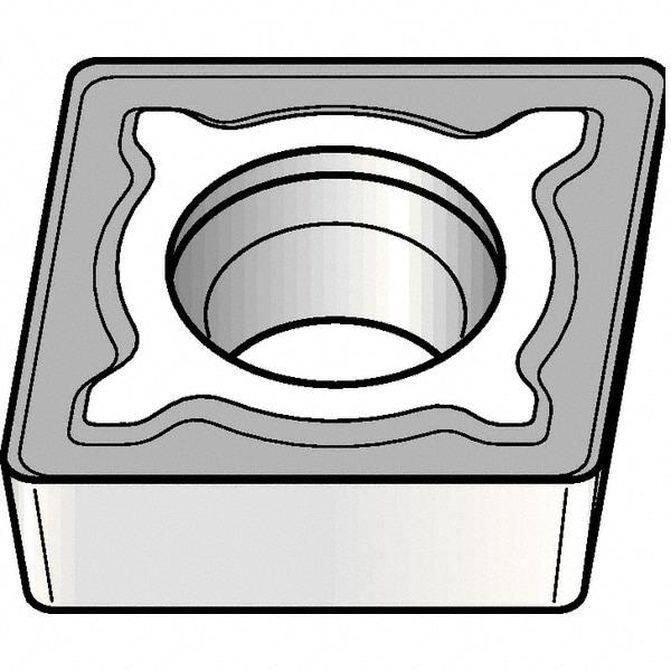

Manufacturer Part Number: 5697910|Relief Angle|7Corner Radius (mm)|Corner Radius (Inch)|1/64Corner Radius (Decimal Inch)|0.0156Included Angle|80degreeManufacturer Grade|KCP10BCoating/Finish|TiCN; Al2O3; TiOCNWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|3/32Insert Thickness (Decimal Inch)|0.0938Series|Screw-OnInscribed Circle (Inch)|1/4Inscribed Circle (Decimal Inch)|0.2500Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|Diamond 80Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|2Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.1102Hole Diameter (Mm) ( - 0 Decimals)|2.80Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|0.0845Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|ScrewWidth (Inch)|1/4inClearance Code|CTolerance Code|MCoating Process|MTCVDLength Range (Decimal Inch)|0.0000 - 0.3000Rake|PositiveInsert Length (mm)|6.45Insert Length (Decimal Inch)|0.2539Insert Length (Inch)|Primary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|CCMT060204MFStandards|ANSI; ISOManufacturers Catalog Number|5697910Cutting Direction|Material Grade|C3; C7Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Multilayer CoatingLead Angle|Coating Classification|CVDChip Breaker|MFRake Angle|0Cutting Edge Style|Chamfered & HonedStyle|Industry Standard Number|CCMT2151MFWidth (Decimal Inch - 4 Decimals)|0.2500inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CCMTInsert Size Code|2151
