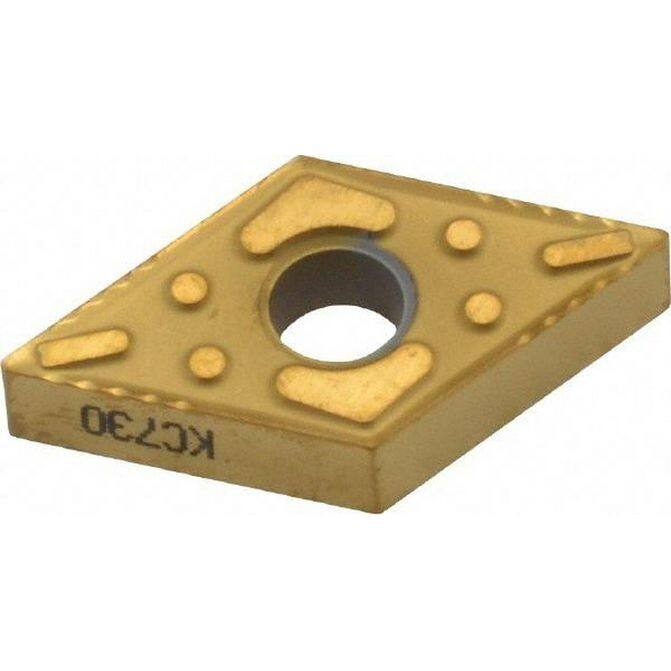

Manufacturer Part Number: 1159615|Relief Angle|0Corner Radius (mm)|Corner Radius (Inch)|1/64Corner Radius (Decimal Inch)|0.0156Included Angle|55degreeManufacturer Grade|KC730Coating/Finish|TiNWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|3/16Insert Thickness (Decimal Inch)|0.1875Series|KENLOCInscribed Circle (Inch)|1/2Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|Diamond 55Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|4Insert Shape Code|DSingle Or Double End|Hole Diameter (Decimal Inch)|0.2031Hole Diameter (Mm) ( - 0 Decimals)|5.16Maximum Depth of Cut (mm)|1.25Maximum Depth of Cut (Decimal Inch)|0.0492Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; PinWidth (Inch)|1/2inClearance Code|NTolerance Code|MCoating Process|PVDLength Range (Decimal Inch)|0.7000 - 10.0000Rake|NegativeInsert Length (mm)|15.50Insert Length (Decimal Inch)|1.2208Insert Length (Inch)|Primary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|M; SAnsi Code|Iso Code|Standards|ANSI; ISOManufacturers Catalog Number|1159615Cutting Direction|Material Grade|C2; C3; C4Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|TiNLead Angle|Coating Classification|PVDChip Breaker|CommonRake Angle|10Cutting Edge Style|HonedStyle|Industry Standard Number|DNMG431PWidth (Decimal Inch - 4 Decimals)|0.5000inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; Boring; Back Turning; Back BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|DNMGInsert Size Code|431
