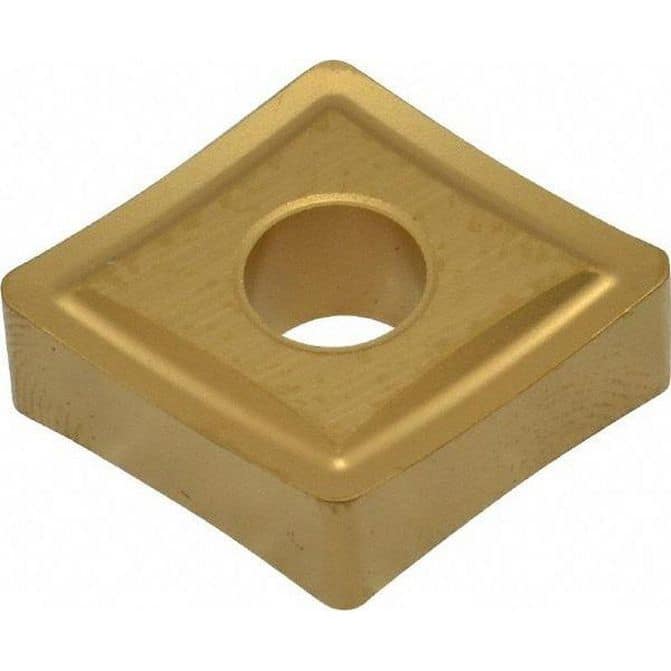

Manufacturer Part Number: 1161289|Relief Angle|0Corner Radius (mm)|Corner Radius (Inch)|3/64Corner Radius (Decimal Inch)|0.0469Included Angle|80degreeManufacturer Grade|KC850Coating/Finish|TiC; TiCN; TiNWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|1/4Insert Thickness (Decimal Inch)|0.2500Series|KENLOCInscribed Circle (Inch)|5/8Inscribed Circle (Decimal Inch)|0.6250Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|Diamond 80Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|4Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.2500Hole Diameter (Mm) ( - 0 Decimals)|6.35Maximum Depth of Cut (mm)|1.25Maximum Depth of Cut (Decimal Inch)|0.0492Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; PinWidth (Inch)|5/8inClearance Code|NTolerance Code|MCoating Process|CVDLength Range (Decimal Inch)|0.6000 - 0.6500Rake|NegativeInsert Length (mm)|16.12Insert Length (Decimal Inch)|0.6346Insert Length (Inch)|Primary Workpiece Material|Steel; Stainless SteelPrimary Workpiece Material Code|P; MSecondary Workpiece Material|Secondary Workpiece Material Code|K; MAnsi Code|Iso Code|Standards|ANSI; ISOManufacturers Catalog Number|1161289Cutting Direction|Material Grade|C5; C6Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Multilayer CoatingLead Angle|Coating Classification|CVDChip Breaker|CommonRake Angle|Cutting Edge Style|HonedStyle|Industry Standard Number|CNMP543Width (Decimal Inch - 4 Decimals)|0.6250inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CNMPInsert Size Code|543
