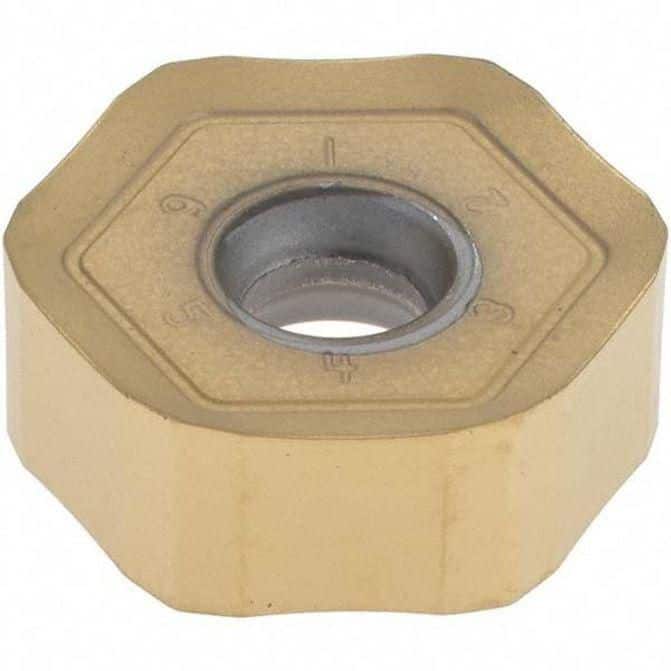

Manufacturer Part Number: 3763727|Insert Style|HNPJInsert Size|5Insert Material|Solid CarbideInsert Shape|HexagonInscribed Circle (Inch)|5/8Manufacturer Grade|KC725MCorner Radius (Decimal Inch)|0.0472Corner Radius (mm)|1.20Number Of Cutting Edges|12Thickness (Decimal Inch - 4 Decimals)|0.2189Thickness (mm)|Coating/Finish|TiAlNRelief Angle|0Maximum Depth of Cut (Decimal Inch)|0.3379Maximum Depth of Cut (mm)|Insert Size Code|535Material Grade|C5; C6; C7Width (Inch)|5/8Length (Inch)|5/8Thickness (Inch)|7/32Inscribed Circle (Decimal Inch)|0.6250Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2000 to 0.2200Corner Radius (Inch)|3/64Inscribed Circle Range (Decimal Inch)|0.6000 to 0.7000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|NeutralSeries|HNPJCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|NegativePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|HNPJ535ANSNGDIso Code|HNPJ0905ANSNGDStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|15Cutting Edge Style|Chamfered; HonedManufacturers Catalog Number|HNPJ0905ANSNGDCutter Series Compatibility|DodekaChip Breaker|GDCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|120Length (mm)|Width (Decimal Inch - 4 Decimals)|0.6250Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6250System Of Measurement|
