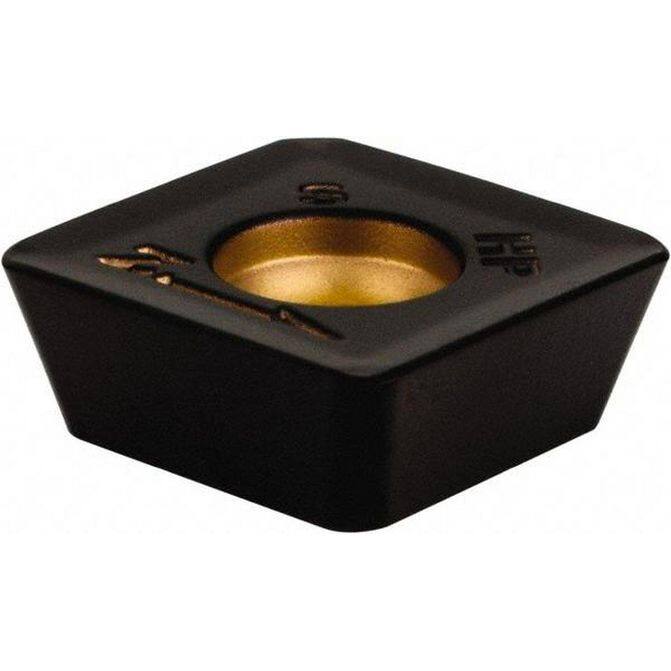

Manufacturer Part Number: 3106097|Insert Style|SDPTInsert Size|4Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|1/2Manufacturer Grade|KCPK30Corner Radius (Decimal Inch)|0.0469Corner Radius (mm)|1.19Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1875Thickness (mm)|Coating/Finish|TiN; TiCN; Al2O3Relief Angle|15Maximum Depth of Cut (Decimal Inch)|Maximum Depth of Cut (mm)|Insert Size Code|433Material Grade|C1; C5; C6Width (Inch)|1/2Length (Inch)|1/2Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|3/64Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|SDPTCoating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; K; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|SDPT433PDSNHPZIso Code|SDPT120412PDSNHPZStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Chamfered; HonedManufacturers Catalog Number|SDPT120412PDSNHPZCutter Series Compatibility|KSSMChip Breaker|HPZCutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5000Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|
