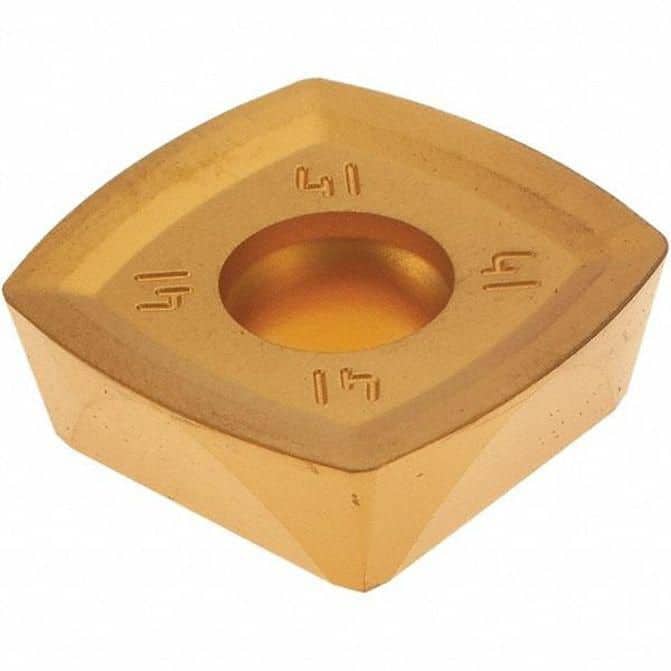

Manufacturer Part Number: 5653139|Insert Style|XELTInsert Size|16Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|X500Corner Radius (Decimal Inch)|0.0470Corner Radius (mm)|Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.2190Thickness (mm)|Coating/Finish|TiN; TiC; TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|Maximum Depth of Cut (mm)|Insert Size Code|160512Material Grade|Width (Inch)|Length (Inch)|Thickness (Inch)|7/32Inscribed Circle (Decimal Inch)|0.6610Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2000 to 0.2200Corner Radius (Inch)|3/64Inscribed Circle Range (Decimal Inch)|0.6000 to 0.7000Length Range (Decimal Inch)|0.6500 to 0.7000Insert Hand|Right HandSeries|XELTCoating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|XELT160512ERD41Iso Code|XELT160512ERD41Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HonedManufacturers Catalog Number|XELT160512ERD41Cutter Series Compatibility|7792VXE16Chip Breaker|D41Cutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.6610Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6610System Of Measurement|
