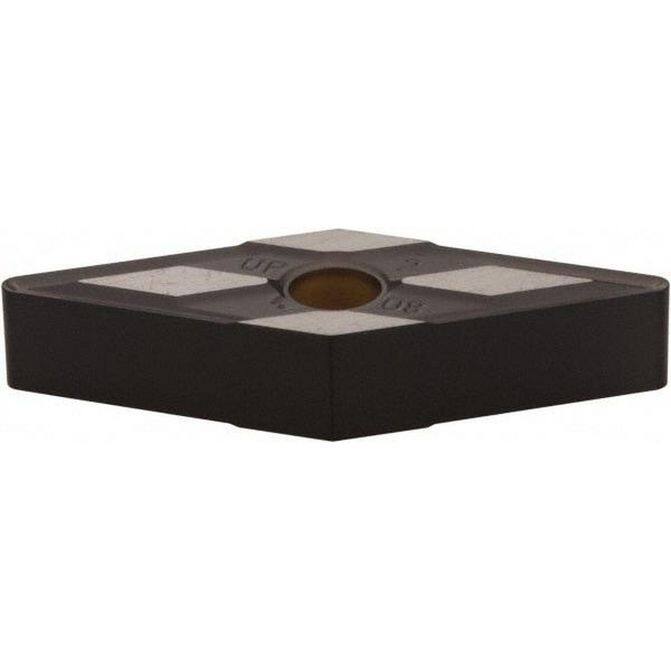

Manufacturer Part Number: 3761062|Relief Angle|0Corner Radius (mm)|Corner Radius (Inch)|1/32Corner Radius (Decimal Inch)|0.0313Included Angle|35degreeManufacturer Grade|KCM25Coating/Finish|TiN; TiCN; Al2O3Wiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|3/16Insert Thickness (Decimal Inch)|0.1875Series|KENLOCInscribed Circle (Inch)|3/8Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|Diamond 35Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|4Insert Shape Code|VSingle Or Double End|Hole Diameter (Decimal Inch)|0.1500Hole Diameter (Mm) ( - 0 Decimals)|3.81Maximum Depth of Cut (mm)|1.25Maximum Depth of Cut (Decimal Inch)|0.0492Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; PinWidth (Inch)|3/8inClearance Code|NTolerance Code|MCoating Process|MTCVDLength Range (Decimal Inch)|0.7000 - 10.0000Rake|NegativeInsert Length (mm)|16.61Insert Length (Decimal Inch)|1.3076Insert Length (Inch)|Primary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|SAnsi Code|Iso Code|Standards|ANSI; ISOManufacturers Catalog Number|3761062Cutting Direction|Material Grade|C1; C2Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Multilayer CoatingLead Angle|Coating Classification|CVDChip Breaker|UPRake Angle|15Cutting Edge Style|HonedStyle|Industry Standard Number|VNMG332UPWidth (Decimal Inch - 4 Decimals)|0.3750inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Turning; Facing; Boring; Back Turning; Back BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|VNMGInsert Size Code|332
