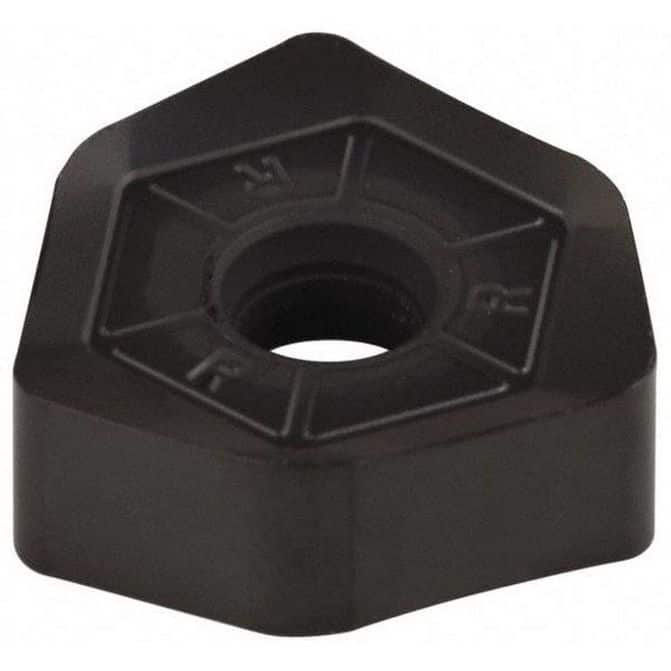

Manufacturer Part Number: 3547035|Insert Style|XNGJInsert Size|5Insert Material|Solid CarbideInsert Shape|TrigonInscribed Circle (Inch)|5/8Manufacturer Grade|KCPK30Corner Radius (Decimal Inch)|0.0630Corner Radius (mm)|1.60Number Of Cutting Edges|6Thickness (Decimal Inch - 4 Decimals)|0.2170Thickness (mm)|Coating/Finish|TiN; TiCN; Al2O3Relief Angle|0Maximum Depth of Cut (Decimal Inch)|Maximum Depth of Cut (mm)|Insert Size Code|535Material Grade|C1; C5; C6Width (Inch)|5/8Length (Inch)|5/8Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.6250Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2000 to 0.2200Corner Radius (Inch)|1/16Inscribed Circle Range (Decimal Inch)|0.6000 to 0.7000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|NeutralSeries|XNGJCoating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|NegativePrimary Workpiece Material|Steel; Stainless Steel; Cast Iron; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; K; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|XNGJ535ANSNGD3WIso Code|XNGJ0905ANSNGD3WStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|WiperManufacturers Catalog Number|XNGJ0905ANSNGD3WCutter Series Compatibility|DodekaChip Breaker|GDCutting Direction|Material Application|Steel; Stainless Steel; Cast Iron; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|80Length (mm)|Width (Decimal Inch - 4 Decimals)|0.6250Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6250System Of Measurement|
