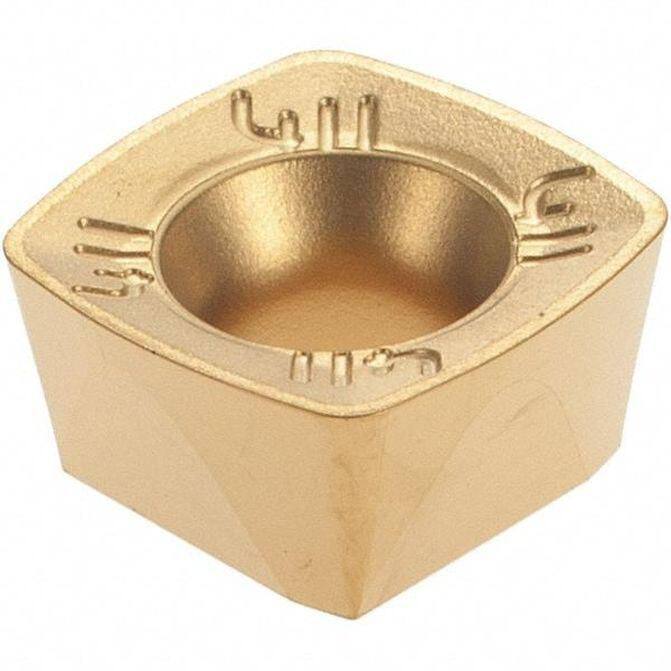

Manufacturer Part Number: 5655172|Insert Style|XDLTInsert Size|09Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|3/8Manufacturer Grade|X500Corner Radius (Decimal Inch)|0.0470Corner Radius (mm)|Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1870Thickness (mm)|Coating/Finish|TiN; TiC; TiNRelief Angle|15Maximum Depth of Cut (Decimal Inch)|Maximum Depth of Cut (mm)|Insert Size Code|090412Material Grade|Width (Inch)|3/8Length (Inch)|3/8Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|3/64Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.3200 to 0.4000Insert Hand|Right HandSeries|XDLTCoating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|XDLT090412ERD411Iso Code|XDLT090412ERD411Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HonedManufacturers Catalog Number|XDLT090412ERD411Cutter Series Compatibility|7792VXD09Chip Breaker|D411Cutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3750Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.3750System Of Measurement|
