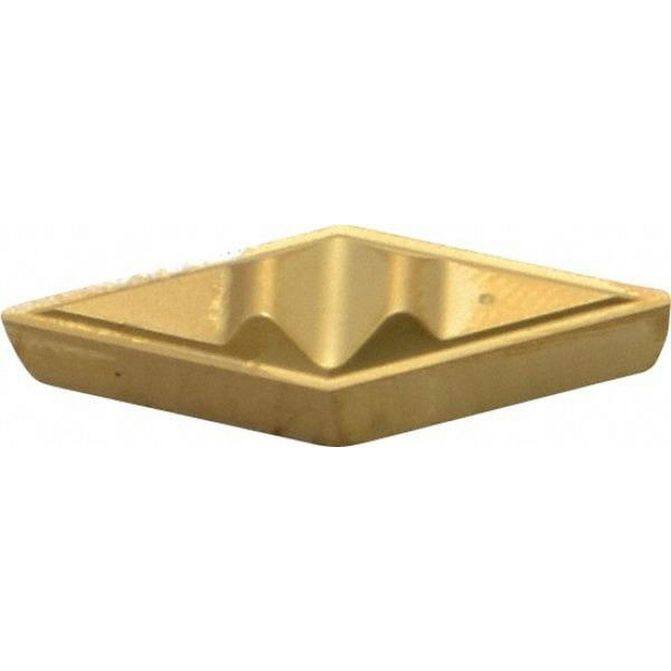

Manufacturer Part Number: 1163226|Insert Style|VPGRInsert Size Code|331Insert Material|CarbideMaterial Grade|P10; P20; M10; M20; S10; S20Width (Inch)|3/8Manufacturer Grade|KC730Thickness (Inch)|3/16Insert Height (Decimal Inch)|0.1875Thickness (mm)|4.76Insert Height (mm)|Maximum Depth of Cut (Decimal Inch)|0.2179Maximum Depth of Cut (mm)|Insert Holding Method|ClampInsert Hand|NeutralCorner Radius (Decimal Inch)|0.0156Corner Radius (mm)|0.40Included Angle|35Relief Angle|8Chipbreaker|CommonInscribed Circle (Inch)|3/8Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|9.53Series|Top NotCoating Process|PVDRake|PositiveInsert Length (Decimal Inch)|0.6538Insert Length (mm)|Insert Length (Inch)|Number Of Cutting Edges|2Hole Diameter (Decimal Inch)|0.0000Hole Diameter (Mm) ( - 0 Decimals)|Primary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|VCGR160404Standards|VPGR331; VCGR160404Rake Angle|10Side Length (Decimal Inch)|0.6538Side Length (mm)|16.61Shape|ParallelogramApplications|Profiling; TurningMSC/Manufacturer Number|VPGR331Coating Classification|PVDCoating/Finish|TiNThickness (Decimal Inch - 4 Decimals)|0.1875Width (Decimal Inch - 4 Decimals)|0.3750Width (mm - 2 Decimals)|UNSPSC Code|23242105
