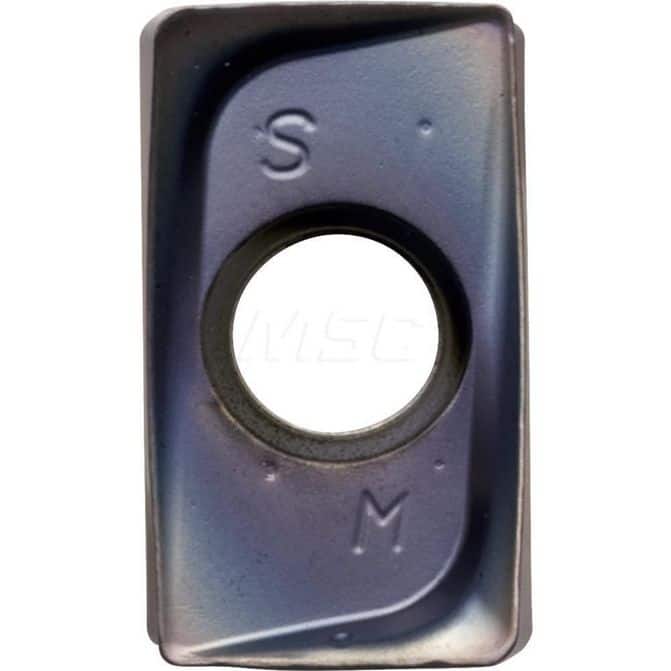

Manufacturer Part Number: TLC04351|Insert Style|LOMUInsert Size|10Insert Material|Solid CarbideInsert Shape|RectangleInscribed Circle (Inch)|Manufacturer Grade|PR1535Corner Radius (Decimal Inch)|0.0312Corner Radius (mm)|0.80Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1575Thickness (mm)|4.00Coating/Finish|MEGACOAT NANORelief Angle|Maximum Depth of Cut (Decimal Inch)|0.4291Maximum Depth of Cut (mm)|Insert Size Code|100408Material Grade|Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2598Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1500 to 0.1750Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.4000 to 0.4500Insert Hand|Right HandSeries|MEWCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|0.13Hole Diameter (Decimal Inch)|0.1339Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|M; SSecondary Workpiece Material|Steel; Stainless Steel; Cast Iron; SuperalloysSecondary Workpiece Material Code|P; M; K; SAnsi Code|LOMU100408ERSMPR1535Iso Code|LOMU100408ER-SMStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HonedManufacturers Catalog Number|LOMU100408ERSMCutter Series Compatibility|MEW; MEWHChip Breaker|ER-SMCutting Direction|Material Application|Stainless Steel; Superalloys & Titanium; Steel; Stainless Steel; Cast Iron; Superalloys & TitaniumUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|10.90Width (Decimal Inch - 4 Decimals)|0.2598Width (mm - 2 Decimals)|6.60Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.4291System Of Measurement|
