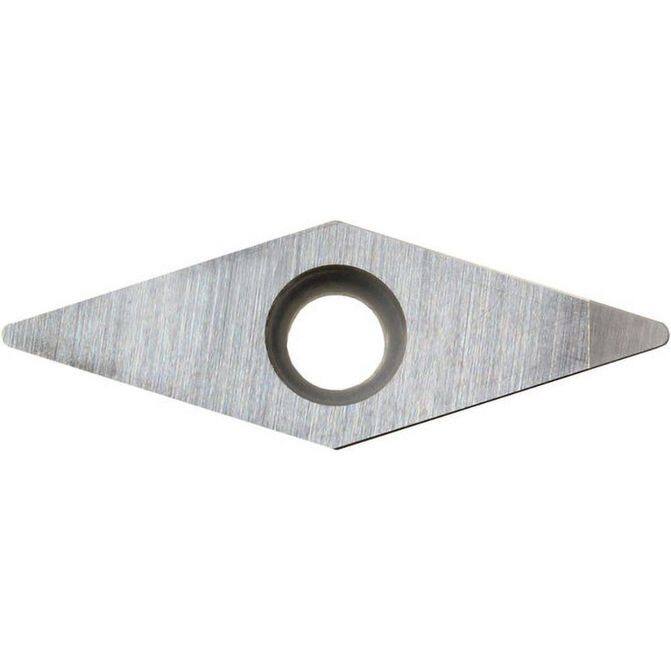

Manufacturer Part Number: TBZ05520|Relief Angle|5Corner Radius (mm)|Corner Radius (Inch)|1/128Corner Radius (Decimal Inch)|0.0080Included Angle|35degreeManufacturer Grade|KBN25MCoating/Finish|MEGACOATWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|1/8Insert Thickness (Decimal Inch)|0.1250Series|ISOIInscribed Circle (Inch)|1/4Inscribed Circle (Decimal Inch)|0.2500Inscribed Circle (mm)|Insert Material|Cubic Boron Nitride (CBN)Insert Shape|Diamond 35Chipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|1Insert Shape Code|VSingle Or Double End|Hole Diameter (Decimal Inch)|0.1102Hole Diameter (Mm) ( - 0 Decimals)|2.79Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|0.1102Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|ScrewWidth (Inch)|1/4inClearance Code|BTolerance Code|GCoating Process|PVDLength Range (Decimal Inch)|0.7000 - 10.0000Rake|PositiveInsert Length (mm)|Insert Length (Decimal Inch)|0.8720Insert Length (Inch)|Primary Workpiece Material|Hard MaterialPrimary Workpiece Material Code|HSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|Iso Code|VBGW110302T00815SEStandards|ANSI; ISOManufacturers Catalog Number|TBZ05520Cutting Direction|Material Grade|MicrograinSingle or Multi Tipped|Single TippedStocking Category|Proprietary Coating Designation|Lead Angle|Coating Classification|PVDChip Breaker|Rake Angle|Cutting Edge Style|HonedStyle|Industry Standard Number|VBGW2205T00315SEKBN25MWidth (Decimal Inch - 4 Decimals)|0.2500inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|NoMulti-Use Application|Back Boring; Copying; External Turning; Facing; Internal Facing; Profiling; UndercuttingTip Length (Decimal Inch)|0.1102Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|VBGWInsert Size Code|2205
