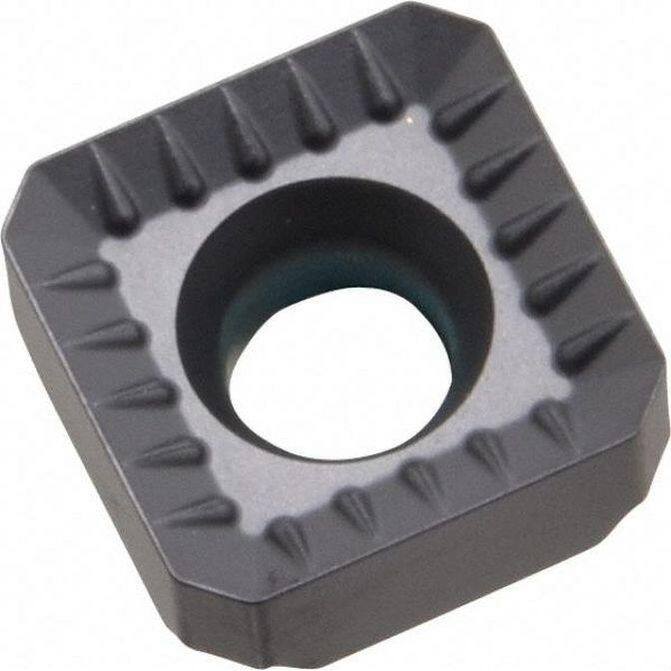

Manufacturer Part Number: 1052248|Insert Style|SNKXInsert Size|12Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|1/2Manufacturer Grade|LCP40MCorner Radius (Decimal Inch)|0.0787Corner Radius (mm)|2.00Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.2189Thickness (mm)|5.56Coating/Finish|TiAIN; Al2 PlusRelief Angle|0Maximum Depth of Cut (Decimal Inch)|Maximum Depth of Cut (mm)|Insert Size Code|1205Material Grade|C5; C6Width (Inch)|1/2Length (Inch)|1/2Thickness (Inch)|7/32Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|12.70Thickness Range (Decimal Inch)|0.2000 to 0.2200Corner Radius (Inch)|5/64Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|Insert Hand|Right HandSeries|SNKXCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|0.20Hole Diameter (Decimal Inch)|0.2047Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|0.5000Rake|Primary Workpiece Material|SteelPrimary Workpiece Material Code|PSecondary Workpiece Material|Stainless SteelSecondary Workpiece Material Code|MAnsi Code|SNKX 1205 AN-TR LCP40MIso Code|SNKX 1205 AN-TR LCP40MStandards|ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|30Cutting Edge Style|Manufacturers Catalog Number|1052248Cutter Series Compatibility|Chip Breaker|TRCutting Direction|Material Application|Steel; Stainless SteelUNSPSC Code|Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|30Length (mm)|12.70Width (Decimal Inch - 4 Decimals)|0.5000Width (mm - 2 Decimals)|12.70Multi-Use Tool|NoLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|
