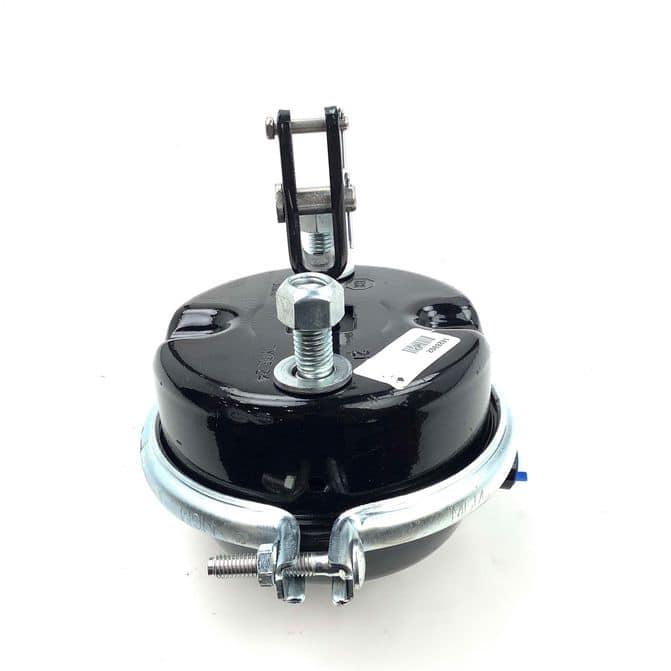

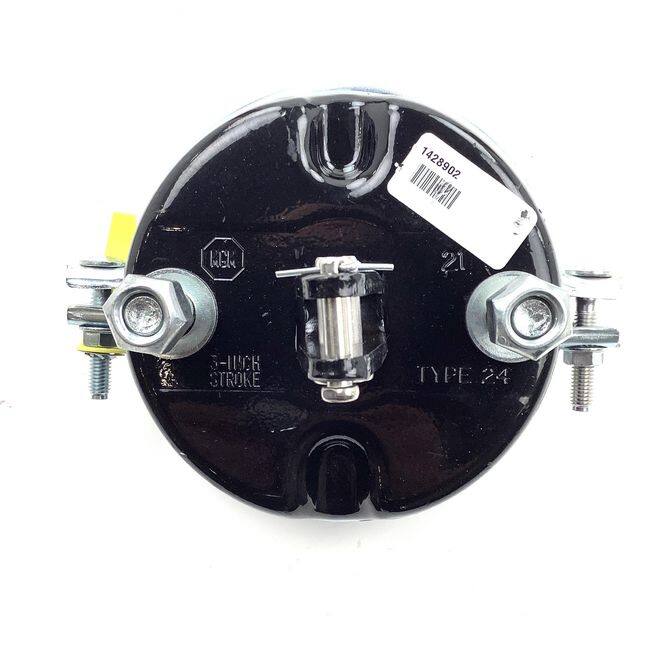

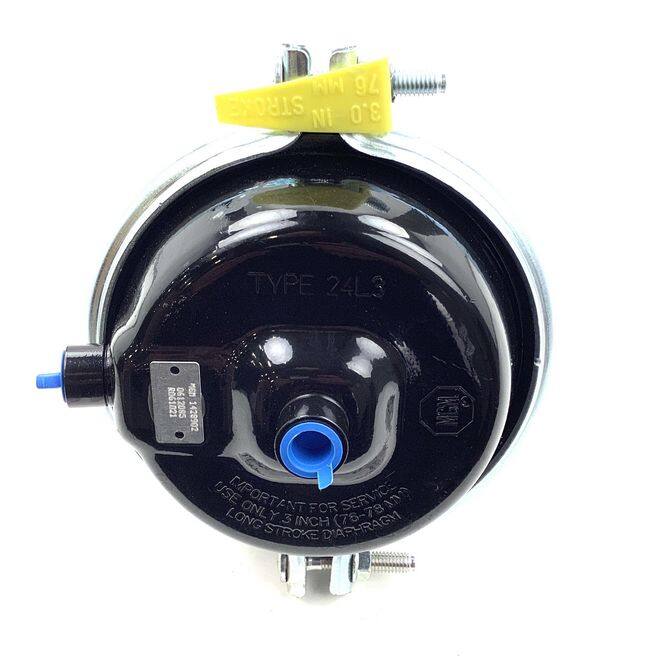

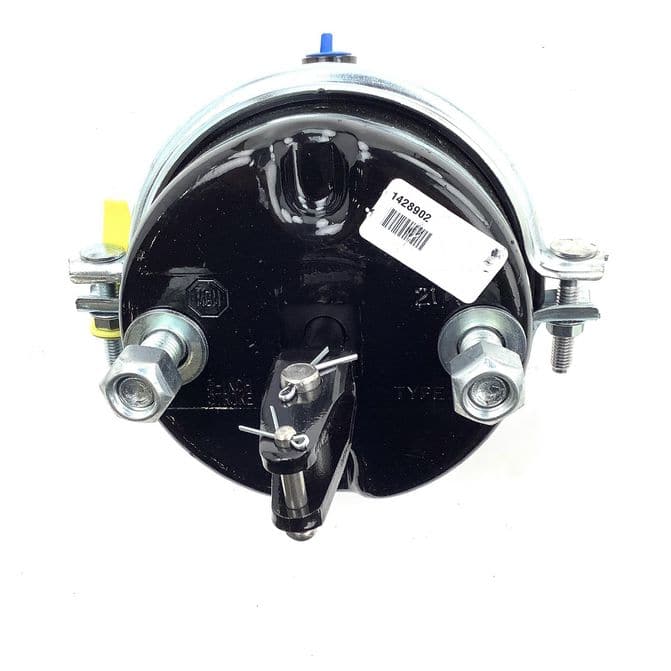

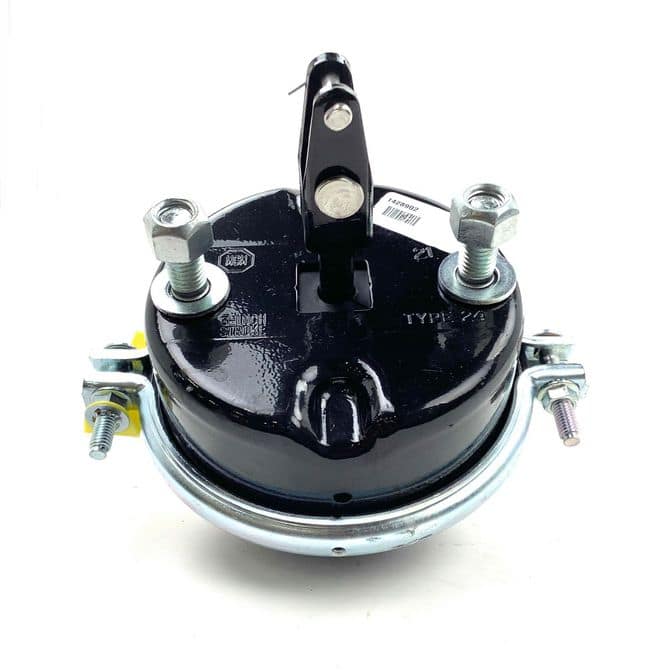

Name: MGM Brakes Service Brake Chamber with Welded Yoke & Neoprene Diaphragm
Brand: MGM BRAKES
SKU: MGM-1428902
Price: 137.99 USD
Availability: InStock

MGM Brakes Service Brake Chamber with Welded Yoke & Neoprene Diaphragm

Part #: 1428902|Brand: MGM BRAKES|MPN #: 1428902

$137.99

/ ea

MGM Brakes Service Brake Chamber with Welded Yoke & Neoprene Diaphragm

Part #: 1428902|Brand: MGM BRAKES|MPN #: 1428902

$137.99

/ ea

Pickup

Not availableat Dallas, TX

Ready to ship PARCEL ELIGIBLE

Get it est. 18 Sep to 75247

Check Nearby Stores

Chamber Type:
Service
Clevis Type:
Welded
Stroke Type:
Long
Pushrod Threads:
welded clevis
Service Size Type:
24
Clevis Included:
Yes
Notes:
C24L3 s-cam brake with neoprene diaphragm, welded yoke
Stroke Type:
Long
Mounting Stud Spacing (Center to Center):
4.75 in
Chamber Housing Length:
5.30 in
Notes:
C24L3 s-cam brake with neoprene diaphragm, welded yoke
Clevis Type:
Welded
Pushrod Threads:
welded clevis
Service Size Type:
24
Stroke Length:
3.00 in
Mounting Stud Threads:
5/8 in-11
Clevis Included:
Yes
Port Size:
3/8 in-18
Service Housing Outer Diameter:
7.37 in
Weight:
9.72 lb
Mounting Stud Length:
1.55 in
Brake Type:
Drum
The MGM Brakes Service Brake Chamber with Welded Yoke & Neoprene Diaphragm is designed to provide superior braking performance in heavy duty applications. This brake chamber features a 3" stroke, 3/8" inlets, and a nylon-reinforced diaphragm for maximum durability. The epoxy-coated formed steel pressure cap ensures a tight seal. FleetPride is your First Click in Heavy Duty®.
Nylon reinforced diaphragms for heavy duty
Epoxy-coated formed steel pressure cap
Top and side air ports 3/8" NPTF
Epoxy-coated formed steel without a pressure chamber
55541428902OTR24LSWC2.25
