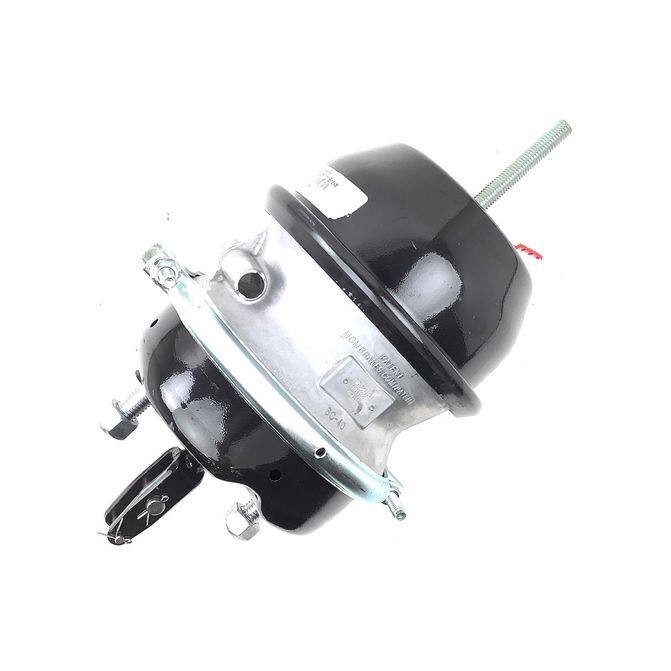

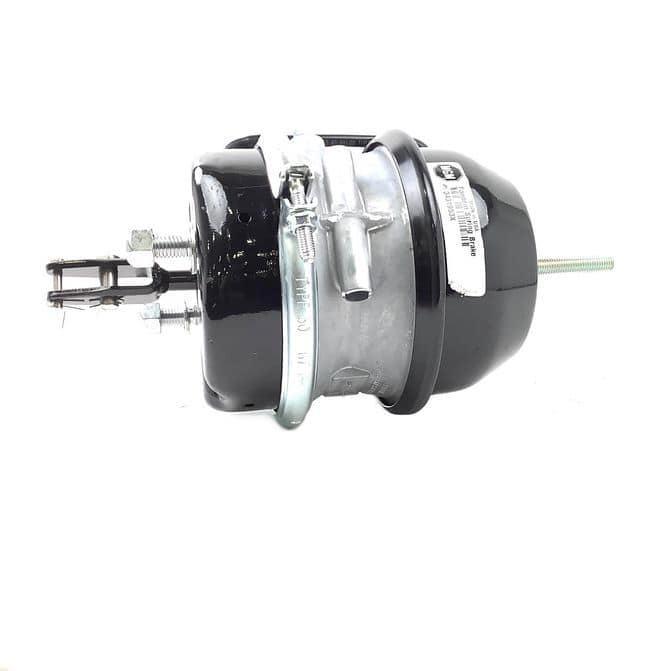

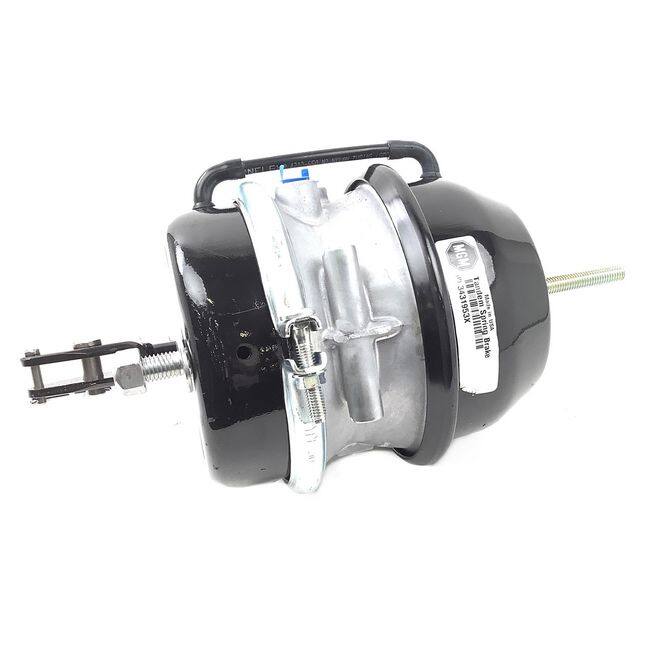

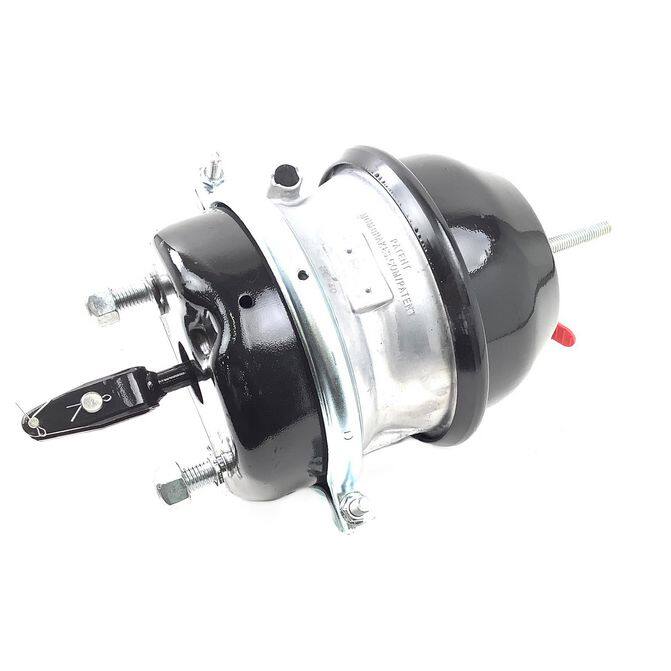

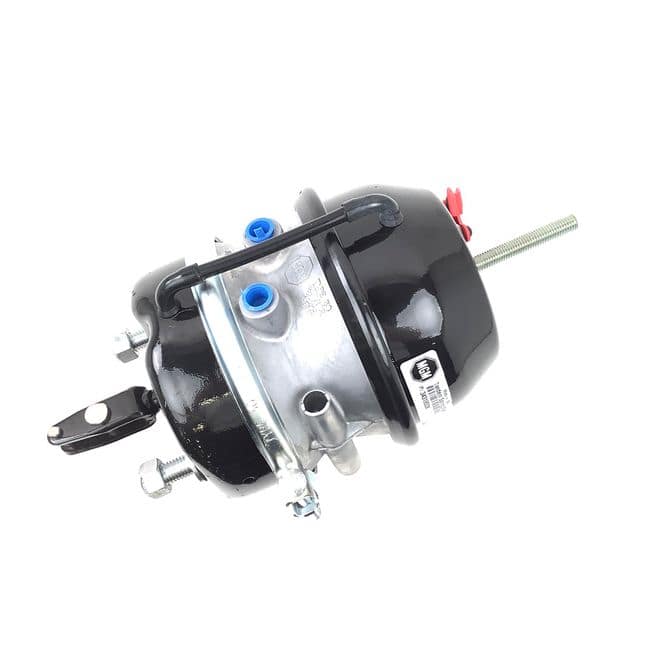

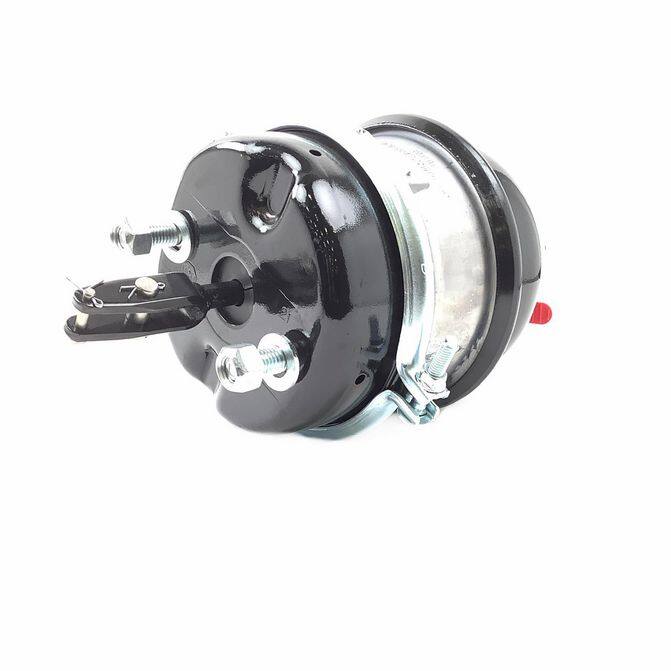

MGM Brakes TR3030T Standard Stroke Spring Brake Chamber with Welded Yoke
Part #: 3431953X|Brand: MGM BRAKES|MPN #: 3431953X
Not Found
$222.99 / ea
Available to transfer
Pick up est. Sep 17 Dallas, TX
Ready to ship PARCEL ELIGIBLE
Get it est. 18 Sep to 75247
  • Double Diaphragm Std Stroke Parking Brakes Port Size: 3/8-18 NPTF, Stroke 2.5 in
    30
    welded clevis
    Spring combination
    Standard
    Air
    4 Year
    30
    2.25
    Yes
    Welded
    2.25 in
    5/8 in-11
    Nitrile Rubber
    3/8 in-18
    2.25 in
    4.75 in
    6.66 in
    19.40 lb
    9.04 in
    8.21 in
    8.31 in
  • Update your semi with enhanced brake safety, with the MGM Brakes 3030 Standard Stroke Spring Brake Chamber that ensures you're Ready for the Road Ahead™. With a pressurized internal chamber, this replacement component applies the spring brakes as a safety measure once the air pressure falls below a certain point. Manufactured with a solid metal body to efficiently contain pressure and the energized spring brakes.

    FleetPride is your First Click in Heavy Duty®.

    • Tamper-resistant design
    • Formed nitrile rubber push rod air seal
    • Heavy duty nylon reinforced diaphragm
    • 360 aluminum center case
    • Outfitted with an epoxy-coated head, non-pressure chamber, and lower push-rod assembly
    • Polymer push-rod guides
    • Externally-stored release bolt
    • 2.5" standard stroke
  • 55543431953X
