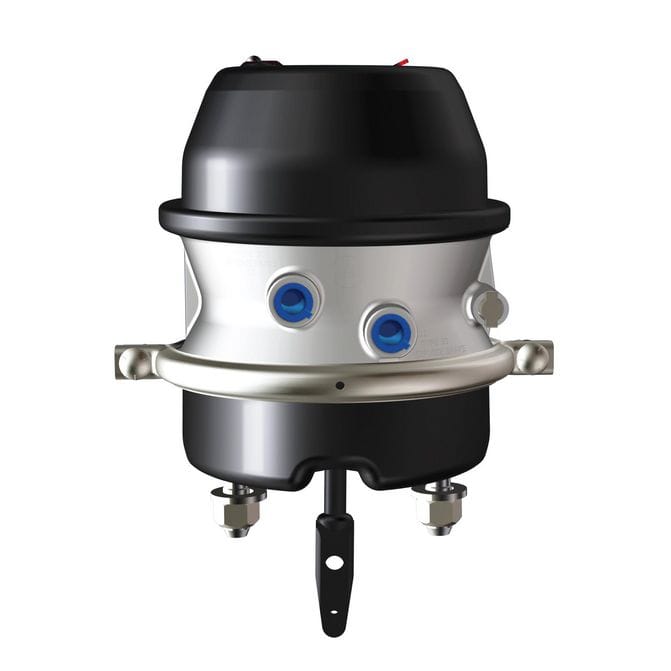

Name: MGM Brakes 3636 Standard Stroke Combo Spring Brake Chamber with 2.25" Push Rod
Brand: MGM BRAKES
SKU: MGM-3437951
Price: 323.99 USD
Availability: InStock

MGM Brakes 3636 Standard Stroke Combo Spring Brake Chamber with 2.25" Push Rod

Part #: 3437951|Brand: MGM BRAKES|MPN #: 3437951

$323.99

/ ea

MGM Brakes 3636 Standard Stroke Combo Spring Brake Chamber with 2.25" Push Rod

Part #: 3437951|Brand: MGM BRAKES|MPN #: 3437951

$323.99

/ ea

Pickup

Not availableat Dallas, TX

Ready to ship PARCEL ELIGIBLE

Get it est. 18 Sep to 75247

Check Nearby Stores

Chamber Type:
Service
Clevis Type:
Welded
Distance To Large Clevis Pin Center From Service Housing Face:
2.25
Clevis Included:
Yes
Notes:
Tamper Resistant Parking Chamber Design
Stroke Type:
Standard
Brake Type:
Air
Service Size Type:
36
Mounting Stud Threads:
5/8 in-11
Spring Housing Outer Diameter:
9.18 in
Chamber Housing Length:
11.13 in
Clevis Pin Center to Service Housing Face Distance:
2.25 in
Port Size:
3/8 in-18
Service Housing Outer Diameter:
9.25 in
Diaphragm Material:
Nylon
Piggyback Length:
8.38 in
Spring Size Type:
36
Pushrod Length:
2.25 in
Mounting Stud Spacing (Center to Center):
4.75 in
Stroke Length:
3.00 in
Pushrod Threads:
welded clevis
Weight:
20.20 lb
Equip your semi to be Ready for the Road Ahead™, with the MGM Brakes 3636 Standard Stroke Combo Spring Brake Chamber, a crucial element that provides enhanced brake safety. To add an extra level of safety, this replacement brake chamber applies the spring brakes once the internal air pressure falls below a certain point. Fashioned with a durable metal body to efficiently contain pressure and the energized spring brakes.

FleetPride is your First Click in Heavy Duty®.
Designed to be tamper resistant

Formed nitrile rubber push rod air seal

Nylon reinforced diaphragm for heavy duty durability

360 aluminum center case

Outfitted with an epoxy-coated head, non-pressure chamber, and lower push-rod assembly

Push-rod guides made with polymer

Externally stored release bolt

3" long stroke
