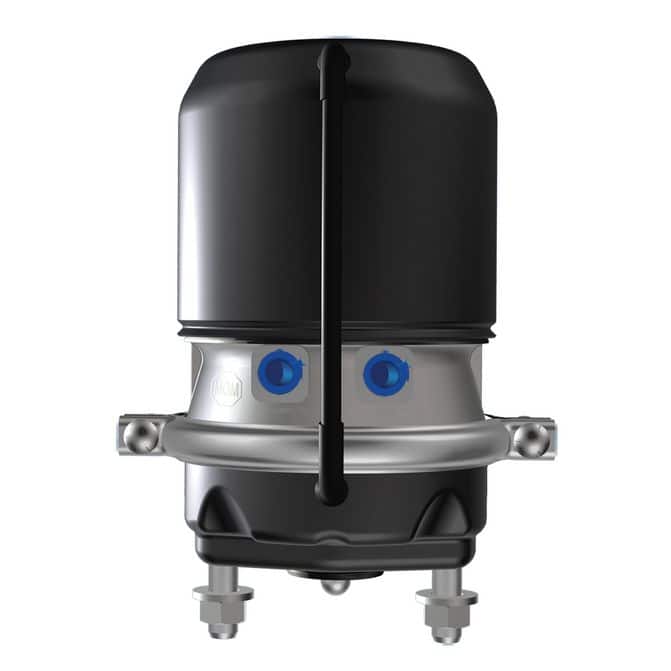

Name: MGM Brakes 2430 Long Stroke Spring Brake Chamber with 15mm Push Rod
Brand: MGM BRAKES
SKU: MGM-MJB2430ET753
Price: 544.99 USD
Availability: BackOrder

MGM Brakes 2430 Long Stroke Spring Brake Chamber with 15mm Push Rod

Part #: MJB2430ET753|Brand: MGM BRAKES|MPN #: MJB2430ET753

MGM Brakes 2430 Long Stroke Spring Brake Chamber with 15mm Push Rod

Part #: MJB2430ET753|Brand: MGM BRAKES|MPN #: MJB2430ET753

Pickup

Not availableat Dallas, TX

Shipping

Not available to 75247

For inventory inquiries, please contact your local branch at (214) 630-8360

Clevis Type:
Welded
Service Size Type:
24
Brake Type:
Disc
Clevis Included:
No
Chamber Type:
Spring combination
Spring Size Type:
30
Stroke Type:
Long
Mounting Stud Threads:
5/8 in-11
Mounting Stud Spacing (Center to Center):
4.75 in
Stroke Length:
3.00 in
Mountind Stud Length:
1.25 in
Port Size:
3/8 in-18
Mounting Stud Length:
1.25 in
Weight:
23.70 lb
Pushrod Threads:
welded clevis
Pushrod Length:
8.00 in
Service Clampband Position:
270 °
Get your semi Ready for the Road Ahead™ with enhanced brake safety, with the MGM Brakes 2430 Long Stroke Spring Brake Chamber. By utilizing a pressure-based chamber, this replacement component is able to apply the spring brakes as a safety measure once the internal air pressure falls below a certain level. Created with a solid metal body to efficiently contain pressure and the energized spring brakes.

FleetPride is your First Click in Heavy Duty®.
Designed to be tamper resistant

Molded nitrile rubber air seal

Nylon reinforced diaphragm for heavy duty durability

Equipped with an epoxy-coated head, non-pressure chamber, and lower push-rod assembly

Polymer push-rod guides

Increased corrosion resistance with an epoxy-coated steel head

New Patented Integral Release Bolt Mechanism

3" long stroke
