Part #: 557023|Brand: MONROE SHOCKS & STRUTS|MPN #: 557023

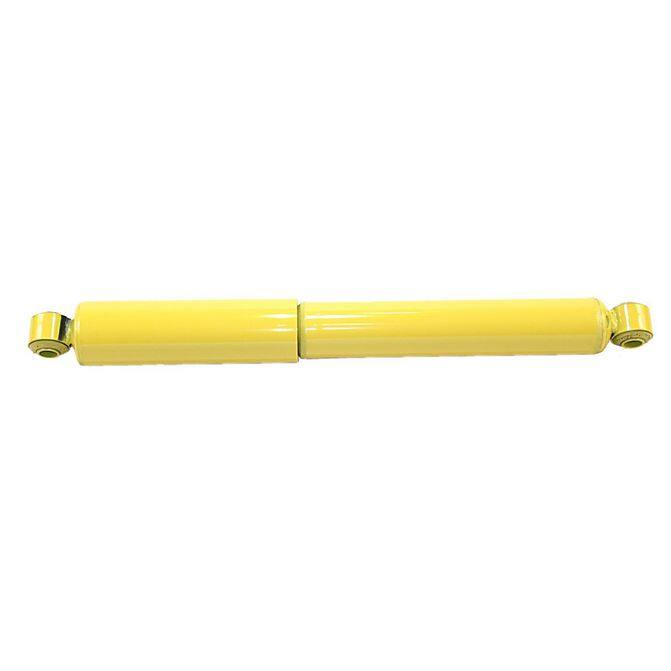

Monroe Shocks & Struts Shock Absorber
Part #: 557023|Brand: MONROE SHOCKS & STRUTS|MPN #: 557023
Yes
23.87 in
Magnum
Loop Bushing& Sleeve Mount - 3/4" Sleeve ID x 1.3/4" Sleeve OAL
15.37 in
Loop Bushing& Sleeve Mount - 3/4" Sleeve ID x 1.3/4" Sleeve OAL
Yes
016003016
Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly
PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability
Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration - on most applications
Loop welding technique: Resistance weld with additional 360-degree weld to provide up to 15,000 lbs
(6,804 kg) tensile strength for maximum durability - when required
2-inch (50
8 mm) or 2-3/8-inch (60
3 mm) reserve tube: The 2" (555xx Series) or 2-3/8' (557xx Series) reserve tube holds more fluid or more consistent performance - when required
Part #: 557023|Brand: MONROE SHOCKS & STRUTS|MPN #: 557023
PICKUP
Styling span Not available
Dallas, TX
SHIP
Styling span Not available
to 75247
For inventory inquiries, please contact your local branch at (214) 630-8360.
Yes
23.87 in
Magnum
Loop Bushing& Sleeve Mount - 3/4" Sleeve ID x 1.3/4" Sleeve OAL
15.37 in
Loop Bushing& Sleeve Mount - 3/4" Sleeve ID x 1.3/4" Sleeve OAL
Yes
016003016
Monroe Gas Magnum Series RV Shock Absorber
Robust hydraulic lock-out: Prevents over-extension of the suspension, top-out of the piston and averts damage to the seal assembly
PTFE coated bearing: Reduces friction during operation between the rod and rod guide, improving durability
Tenneco shouldered bushings: Shouldered bushing and bonded bushing with sleeve designs prevent (bushing walkout) for improved quality and durability - on most applications
Nitrogen gas-charged: For improved ride and handling, helps maintain tire to road contact by reducing aeration - on most applications
Loop welding technique: Resistance weld with additional 360-degree weld to provide up to 15,000 lbs
(6,804 kg) tensile strength for maximum durability - when required
2-inch (50
8 mm) or 2-3/8-inch (60
3 mm) reserve tube: The 2" (555xx Series) or 2-3/8' (557xx Series) reserve tube holds more fluid or more consistent performance - when required
1-3/8-inch (35 mm) or 1-3/4-inch (44
6 mm) bore: The 1-3/8' (555xx Series) or 1-3/4" (557xx Series) bore is larger than most shocks to provide more efficient and consistent control - when required
5/8-inch (16 mm) diameter piston rod: Nitrocarburized design more environmentally friendly, maintaining chrome structural benefits, without affecting durability or use life of the rod
Sintered iron design allows for more precise piston dimensions, requiring no additional components for exceptional fit - on most applications
05-inch Pressure tube withstanding pressure of 9KPSI
All weather fluid: Contains special modifiers to reduce frictions and ensure smooth rod reaction
