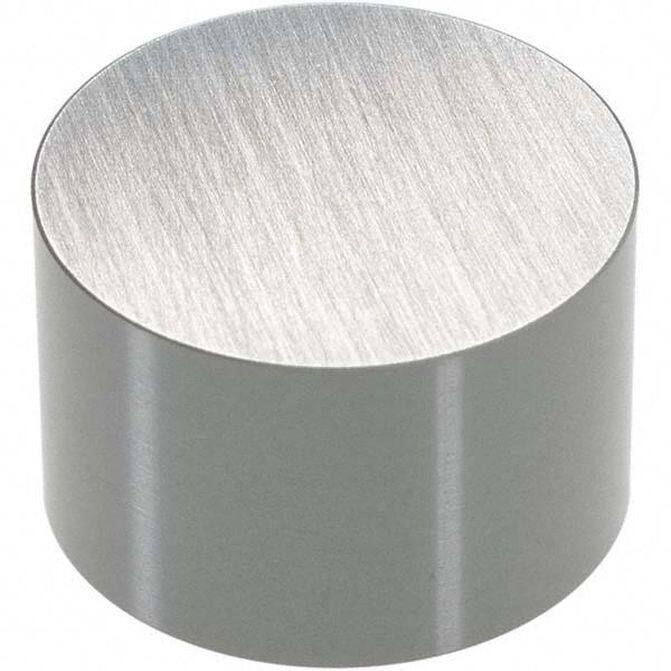

Manufacturer Part Number: 7903524|Relief Angle|0Corner Radius (mm)|Corner Radius (Inch)|1/4Corner Radius (Decimal Inch)|0.2500Included Angle|360degreeManufacturer Grade|WA1Coating/Finish|Bright/UncoatedWiper Edge|NoInsert Hand|NeutralInsert Thickness|Insert Thickness (Inch)|5/16Insert Thickness (Decimal Inch)|0.3125Series|RNGInscribed Circle (Inch)|1/2Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|Insert Material|Whiskered CeramicInsert Shape|RoundChipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|8Insert Shape Code|RSingle Or Double End|Hole Diameter (Decimal Inch)|0.2030Hole Diameter (Mm) ( - 0 Decimals)|Maximum Depth of Cut (mm)|Maximum Depth of Cut (Decimal Inch)|0.1667Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|ClampWidth (Inch)|1/2inClearance Code|NTolerance Code|GCoating Process|UncoatedLength Range (Decimal Inch)|0.5000 - 0.6000Rake|NegativeInsert Length (mm)|Insert Length (Decimal Inch)|0.5000Insert Length (Inch)|1/2Primary Workpiece Material|Cast Iron; Superalloys & Titanium; Hard MaterialPrimary Workpiece Material Code|K; S; HSecondary Workpiece Material|Hard MaterialSecondary Workpiece Material Code|HAnsi Code|Iso Code|RNGN 120700 T01020Standards|ANSI; ISOManufacturers Catalog Number|7903524Cutting Direction|Material Grade|Alumina SiCSingle or Multi Tipped|Stocking Category|Proprietary Coating Designation|UncoatedLead Angle|Coating Classification|UncoatedChip Breaker|Flat TopRake Angle|0Cutting Edge Style|Chamfered & HonedStyle|Industry Standard Number|RNG45T0420Width (Decimal Inch - 4 Decimals)|0.5000inWidth (mm - 2 Decimals)|Multi-Use Tool|YesFull Radius|YesMulti-Use Application|Turning; Facing; BoringTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|RNGInsert Size Code|45
