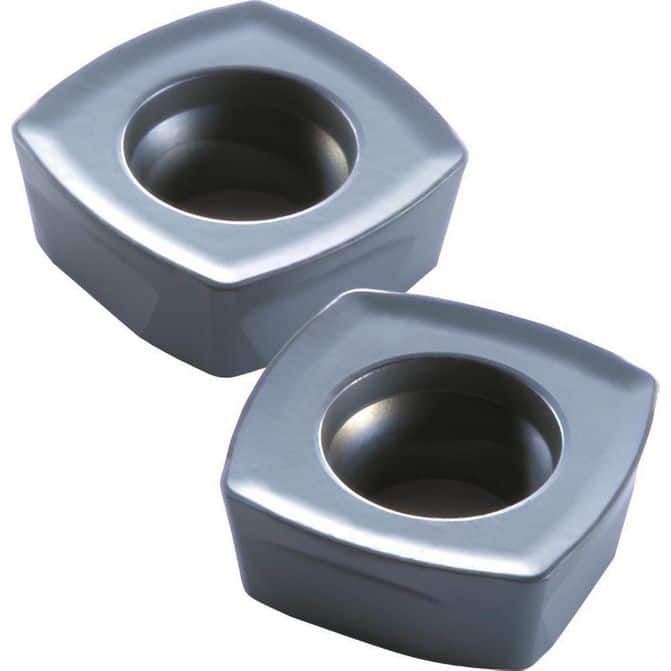

Manufacturer Part Number: 7816021|Insert Style|SDMTInsert Size|09Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|3/8Manufacturer Grade|XC5040Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1563Thickness (mm)|3.97Coating/Finish|TiN; TiB2Relief Angle|15.00Maximum Depth of Cut (Decimal Inch)|0.0394Maximum Depth of Cut (mm)|Insert Size Code|09T308Material Grade|Width (Inch)|3/8Length (Inch)|3/8Thickness (Inch)|5/32Inscribed Circle (Decimal Inch)|0.3748Inscribed Circle (mm)|9.52Thickness Range (Decimal Inch)|0.1500 to 0.1750Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|Length Range (Decimal Inch)|0.3200 to 0.4000Insert Hand|Right HandSeries|78PHCCoating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Superalloys & TitaniumPrimary Workpiece Material Code|SSecondary Workpiece Material|Stainless SteelSecondary Workpiece Material Code|MAnsi Code|SDMT09T308ER-SMIso Code|SDMT09T308ER-SMStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|HonedManufacturers Catalog Number|7816021Cutter Series Compatibility|78PHCChip Breaker|SMCutting Direction|Material Application|Superalloys & Titanium; Stainless SteelUNSPSC Code|23171618Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3748Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.3748System Of Measurement|Metric
