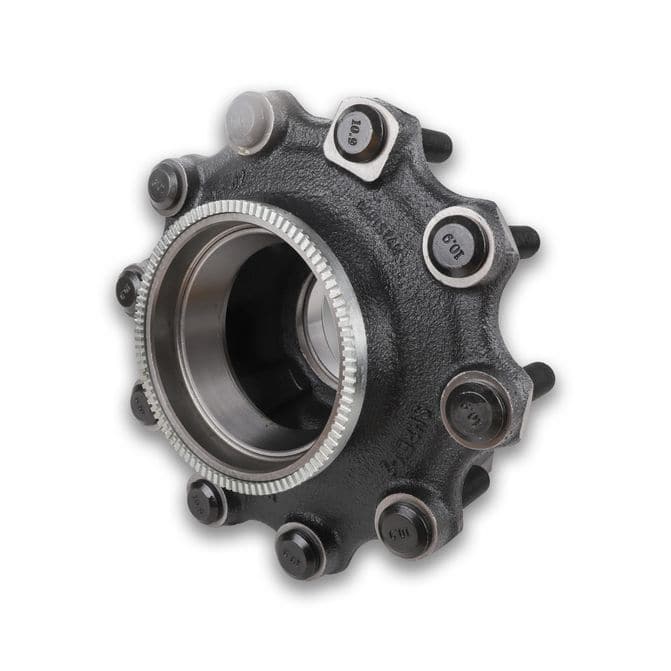

OTR Wheel Hub - Conventional TN Axle / Short Stud

Part #: OTR9348PAREV2SSBX|Brand: OTR|MPN #: R 25.09 100127

$311.99

/ ea

OTR Wheel Hub - Conventional TN Axle / Short Stud

Part #: OTR9348PAREV2SSBX|Brand: OTR|MPN #: R 25.09 100127

$311.99

/ ea

In stock Dallas, TX

Ready for pick up within 1hr

Same Day Delivery

Get it to 75247 est. 4hrs

SAME DAY

Orders placed after 4PM (CST) deliver on the next business day.

Ready to ship PARCEL ELIGIBLE

Get it est. 4 Oct to 75247

Check Nearby Stores

Frequently Bought With

Bendix QR-L™ Series Inline Quick Release Valve

Part #800333

$41.79

CRC Glass Cleaner 18 oz.

Part #05401

$6.29

Tractor Seal, FF Steer Axle, 12K lb

Part #370001A

$38.79

Radiator Specialties Heavy Duty Silicone Lubricant Aerosol Can 11 oz. - Yellow

Part #M914

$20.79

Lucas Oil Hydraulic Oil Booster / Stop Leak - 1 Gallon

Part #10018

$40.19

Power Products Hub

Part #9348PA-REV2-SSBX

$320.99

Best Seller

Timken 2.62" MileMate® 19K Trailer Cone and Cup Tapered Roller Bearing

Part #SET413

$56.99

OTR 3.54" Inner Wheel Bearing Cone for 19K-22.5K Trailer

Part #OTRHM218248

$42.79

Lisle Standard 4-1/8" to 4-1/2" Swivel Grip Oil Filter Wrench

Part #53250

$16.59

OTR 12V 8-Groove Pulley A/C Compressor with 119mm Clutch for Peterbilt

Part #PTAC5365

$350.99

Power Products Flanged Lock Nut

Part #90-12012

$3.49

DORMAN Rectangular Engine Oil Pressure Sensor for Kenworth

Part #904-7104

$182.99

Fuller- Transmissions Gasket Kit

Part #K-2921

$74.99

OTR 3/8" NPT 4-Way Air Pilot Spring Return Valve

Part #OTR320182

$132.99

Fuller- Transmissions 18025 Transmissions Oil Cooler

Part #18025

$349.99

OTR 2.63" Outer Wheel Bearing Cone for 19K-22.5K Trailer

Part #OTRHM212049

$31.89

Power Products 1/2" Size 45 ° Brass Street Elbow

Part #BP124-8

$9.89

OTR Water Pump for Cummins ISX/ISZ

Part #OTR45052HD

$349.99

OTR 7/8"-14 x 5-1/4" Landing Gear Bolt Kit

Part #OTR90-12139

$15.99

Dayco 6 Groove Steel Serpentine HD Idler/Tensioner Pulley

Part #89120

$62.99

ABS Sensor Ring Included:
Yes
Wheel Studs Included:
Yes
Bolt Pattern:
10x11.25 in. (285.75mm)
Stud Count:
10
ABS Ring:
Machined into hub
Outer Bearing Cone #:
0
Stud Part #:
E-6035
Hub Material:
Iron
Wheel Mounting Pilot Type:
Hub (FN)
Pilot Diameter:
8.75 in
Inner Bearing Cup #:
HM218210
Wheel Type:
Steel dual
Bolt Circle:
11.25
Outer Bearing Cup #:
HM212011
Stud Thread Direction:
Right hand thread
Hub Part #:
OTR9348PA
Stud Style:
Round head serrated
Stud Length:
3.94
Stud Thread Size:
M22 x 1.5 mm
Notes:
Trailer Axle, Preset Hub And Rotor Assembly
Inner Bearing Cone #:
0
Stud Stand Out:
3.25
Brake Drum Type or Rotor:
Outboard
Stud Part #:
E-6035
Outer Bearing Cup #:
HM212011
Inner Bearing Cup #:
HM218210
With Expertise Built In™, the OTR Trailer Axle Wheel Hub Assembly ensures the wheel stays attached to your rig. Housing the bearings, this heavy duty wheel hub assembly permits the wheel to successfully turn. This crucial steering gear component is comprised of aluminum for the durability you need for the road ahead. FleetPride is your First Click in Heavy Duty®.
Included are cups and studs
Made of aluminum
Treated with protective coatings and finishes to resist corrosion and withstand harsh environmental conditions
For trailer axle
R25.02200000020101
OTR
OTR9348PA6035
POWER PRODUCTS
9348PAREV2SSBX
UNKNOWN
202313T
Warranty Time Period1 Year
Warranty CodeB
