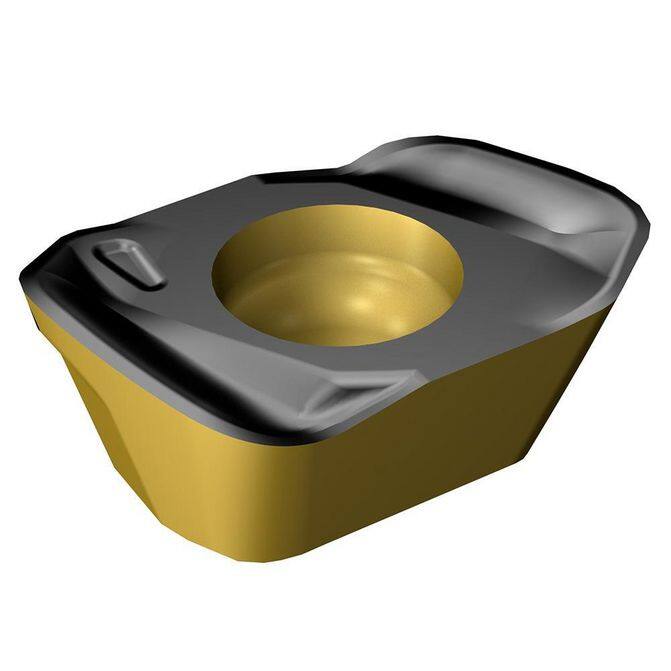

Manufacturer Part Number: 8029502|Insert Style|MH20Insert Size|08Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|4340Corner Radius (Decimal Inch)|0.0827Corner Radius (mm)|Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1587Thickness (mm)|Coating/Finish|TiCN; Al2O3; TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.0472Maximum Depth of Cut (mm)|Insert Size Code|080425Material Grade|P40; M40; K40Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3346Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1500 to 0.1750Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.3000 to 0.3500Length Range (Decimal Inch)|0.0000 to 0.3200Insert Hand|Right HandSeries|MH20Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1339Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless SteelPrimary Workpiece Material Code|P; MSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|MH20-080425M-M50 4340Iso Code|MH20-080425M-M50 4340Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|13Cutting Edge Style|Corner RoundedManufacturers Catalog Number|MH20-080425M-M50 4340Cutter Series Compatibility|MH20Chip Breaker|M50Cutting Direction|Material Application|Steel; Stainless SteelUNSPSC Code|23242105Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|105Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3346Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.2323System Of Measurement|Decimal Inch
