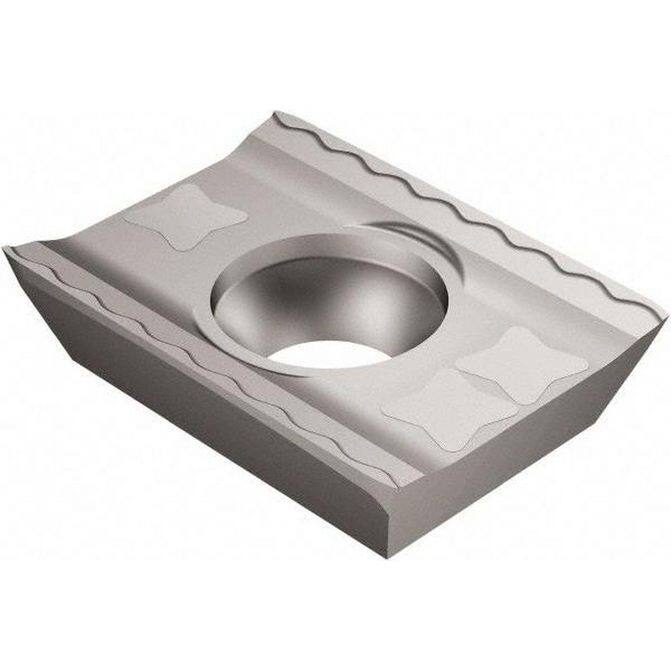

Manufacturer Part Number: 6971934|Insert Style|LDHTInsert Size|19Insert Material|Solid CarbideInsert Shape|RectangleInscribed Circle (Inch)|Manufacturer Grade|1130Corner Radius (Decimal Inch)|0.0079Corner Radius (mm)|Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1870Thickness (mm)|4.75Coating/Finish|AlTiCrNRelief Angle|15.00Maximum Depth of Cut (Decimal Inch)|0.7520Maximum Depth of Cut (mm)|Insert Size Code|190400Material Grade|P30; M15; N15Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5420Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/128Inscribed Circle Range (Decimal Inch)|0.5100 to 0.6000Length Range (Decimal Inch)|0.7000 to 0.9000Insert Hand|NeutralSeries|LDHTCoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.2244Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard MaterialPrimary Workpiece Material Code|P; M; N; S; HSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|LDHT 19 04 00-PL 1130Iso Code|LDHT 19 04 00-PL 1130Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Corner RoundedManufacturers Catalog Number|LDHT 19 04 00-PL 1130Cutter Series Compatibility|R215.64; RA215.64Chip Breaker|PLCutting Direction|Material Application|Steel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard MaterialUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5420Width (mm - 2 Decimals)|13.77Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.7520System Of Measurement|
