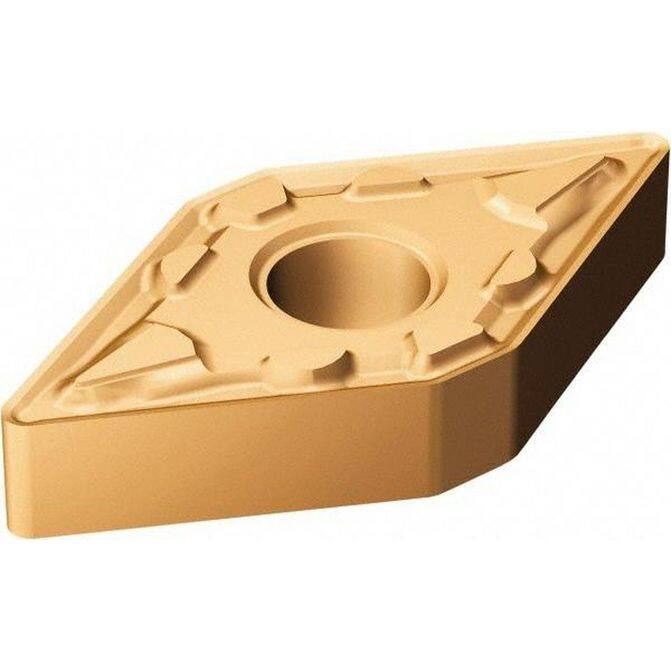

Manufacturer Part Number: 5731710|Relief Angle|0Corner Radius (mm)|0.80Corner Radius (Inch)|1/32Corner Radius (Decimal Inch)|0.0315Included Angle|55Manufacturer Grade|1125Coating/Finish|TiAlN; AlCr2O3Wiper Edge|NoInsert Hand|NeutralInsert Thickness|6.35Insert Thickness (Inch)|1/4Insert Thickness (Decimal Inch)|0.2500Series|T-Max PInscribed Circle (Inch)|1/2Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|12.70Insert Material|CarbideInsert Shape|DiamondChipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|4Insert Shape Code|DSingle Or Double End|Hole Diameter (Decimal Inch)|0.2032Hole Diameter (Mm) ( - 0 Decimals)|5.16Maximum Depth of Cut (mm)|14.70Maximum Depth of Cut (Decimal Inch)|0.5787Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|Clamp; PinWidth (Inch)|Clearance Code|NTolerance Code|MCoating Process|PVDLength Range (Decimal Inch)|0.6000 - 0.6500Rake|Insert Length (mm)|15.50Insert Length (Decimal Inch)|0.6102Insert Length (Inch)|Primary Workpiece Material|SteelPrimary Workpiece Material Code|PSecondary Workpiece Material|Steel; Stainless Steel; Non-Ferrous Metal; Superalloy; TitaniumSecondary Workpiece Material Code|M; N; P; SAnsi Code|Iso Code|DNMG 15 06 08-MM 1125Standards|Manufacturers Catalog Number|5731710Cutting Direction|Material Grade|Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Lead Angle|Coating Classification|Chip Breaker|MMRake Angle|Cutting Edge Style|Style|Industry Standard Number|Width (Decimal Inch - 4 Decimals)|Width (mm - 2 Decimals)|Multi-Use Tool|Full Radius|Multi-Use Application|Tip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|DNMGInsert Size Code|442
