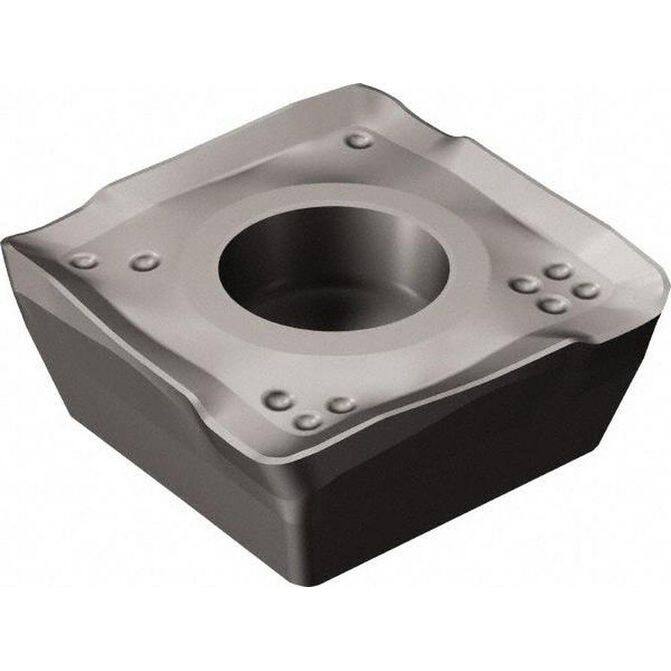

Manufacturer Part Number: 6971897|Insert Style|490Insert Size|14Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|1130Corner Radius (Decimal Inch)|0.0787Corner Radius (mm)|Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1535Thickness (mm)|3.90Coating/Finish|AlTiCrNRelief Angle|16.00Maximum Depth of Cut (Decimal Inch)|0.3937Maximum Depth of Cut (mm)|10.00Insert Size Code|140420Material Grade|P30; M15; N15Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5433Inscribed Circle (mm)|13.80Thickness Range (Decimal Inch)|0.1500 to 0.1750Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5100 to 0.6000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|490Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|0.16Hole Diameter (Decimal Inch)|0.1614Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard MaterialPrimary Workpiece Material Code|P; M; N; S; HSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|490R-140420M-PM 1130Iso Code|490R-140420M-PM 1130Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|23Cutting Edge Style|Corner RoundedManufacturers Catalog Number|490R-140420M-PM 1130Cutter Series Compatibility|490Chip Breaker|PMCutting Direction|Material Application|Steel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard MaterialUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5433Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5433System Of Measurement|
