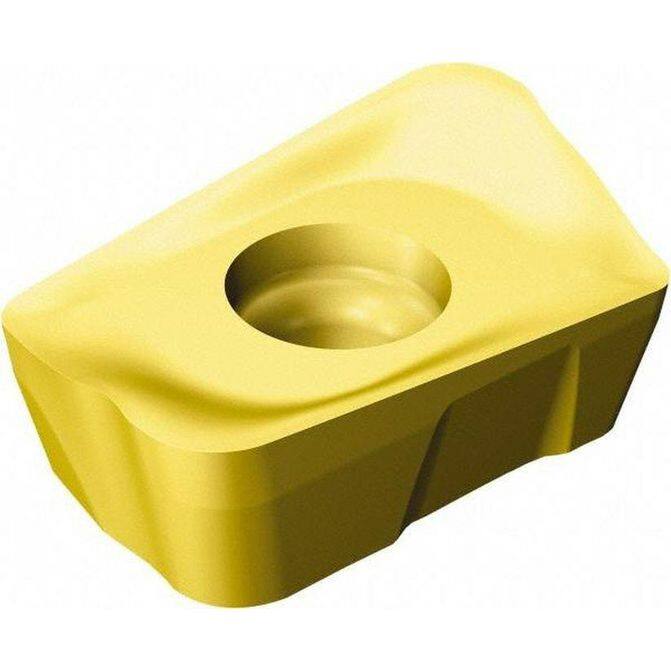

Manufacturer Part Number: 5745668|Insert Style|R390Insert Size|18Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|2040Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.2492Thickness (mm)|6.33Coating/Finish|TiCrN; Al2O3; TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.6299Maximum Depth of Cut (mm)|16.00Insert Size Code|180608Material Grade|P45; M40; S30Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4331Inscribed Circle (mm)|11.00Thickness Range (Decimal Inch)|0.2350 to 0.2500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|Right HandSeries|R390Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|0.16Hole Diameter (Decimal Inch)|0.1634Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|R390-18 06 08M-MM 2040Iso Code|R390-18 06 08M-MM 2040Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|5Cutting Edge Style|Corner RoundedManufacturers Catalog Number|R390-18 06 08M-MM 2040Cutter Series Compatibility|M-40; R390Chip Breaker|MMCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|15.40Width (Decimal Inch - 4 Decimals)|0.4331Width (mm - 2 Decimals)|11.00Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6063System Of Measurement|
