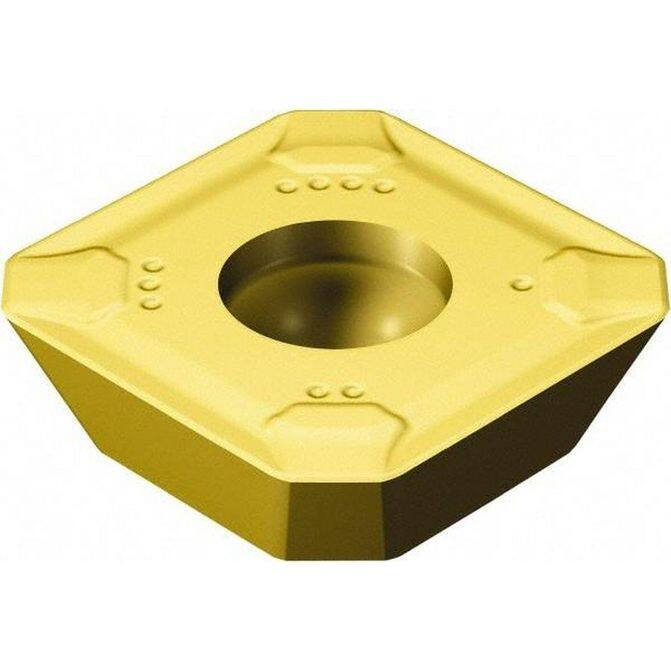

Manufacturer Part Number: 5744014|Insert Style|R245Insert Size|12Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|2030Corner Radius (Decimal Inch)|0.0591Corner Radius (mm)|1.50Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1563Thickness (mm)|3.97Coating/Finish|TiAlN; TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.2559Maximum Depth of Cut (mm)|6.50Insert Size Code|12T3Material Grade|P30; M25; S20Width (Inch)|Length (Inch)|Thickness (Inch)|5/32Inscribed Circle (Decimal Inch)|0.5276Inscribed Circle (mm)|13.40Thickness Range (Decimal Inch)|0.1500 to 0.1750Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5100 to 0.6000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|R245Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|0.16Hole Diameter (Decimal Inch)|0.1614Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|P; M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|R245-12 T3 K-MM 2030Iso Code|R245-12 T3 K-MM 2030Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|15Cutting Edge Style|Corner RoundedManufacturers Catalog Number|R245-12 T3 K-MM 2030Cutter Series Compatibility|R245Chip Breaker|MMCutting Direction|Material Application|Steel; Stainless Steel; Superalloys & TitaniumUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|10.00Width (Decimal Inch - 4 Decimals)|0.5276Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5276System Of Measurement|
