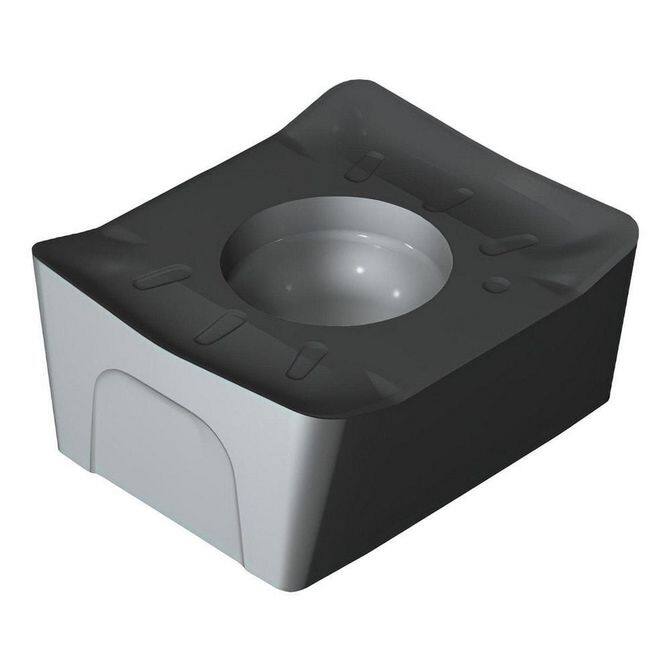

Manufacturer Part Number: 7295507|Insert Style|N331.1AInsert Size|05Insert Material|Solid CarbideInsert Shape|RectangleInscribed Circle (Inch)|Manufacturer Grade|S30TCorner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1768Thickness (mm)|4.45Coating/Finish|TiAlNRelief Angle|0.00Maximum Depth of Cut (Decimal Inch)|0.2244Maximum Depth of Cut (mm)|Insert Size Code|054508Material Grade|M25; S25Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3740Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1750 to 0.1850Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.0000 to 0.3200Insert Hand|NeutralSeries|N331.1ACoating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1142Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|N331.1A-054508E-L30 S30TIso Code|N331.1A-054508E-L30 S30TStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|17Cutting Edge Style|Corner RoundedManufacturers Catalog Number|N331.1A-054508E-L30 S30TCutter Series Compatibility|N331.32Chip Breaker|L30Cutting Direction|Material Application|Stainless Steel; Superalloys & TitaniumUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3740Width (mm - 2 Decimals)|9.50Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.2244System Of Measurement|
