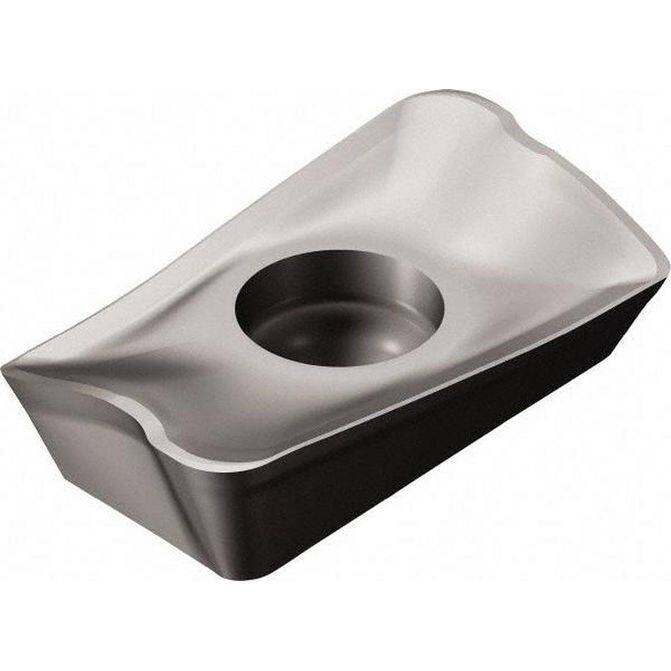

Manufacturer Part Number: 6971856|Insert Style|R390Insert Size|17Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|1130Corner Radius (Decimal Inch)|0.1220Corner Radius (mm)|Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1875Thickness (mm)|4.76Coating/Finish|AlTiCrNRelief Angle|19.00Maximum Depth of Cut (Decimal Inch)|0.6181Maximum Depth of Cut (mm)|15.70Insert Size Code|170431Material Grade|P30; M15; N15Width (Inch)|Length (Inch)|Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.3780Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|Right HandSeries|R390Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|0.16Hole Diameter (Decimal Inch)|0.1614Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard MaterialPrimary Workpiece Material Code|P; M; N; S; HSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|R390-17 04 31E-PM 1130Iso Code|R390-17 04 31E-PM 1130Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|22Cutting Edge Style|Corner RoundedManufacturers Catalog Number|R390-17 04 31E-PM 1130Cutter Series Compatibility|R390Chip Breaker|PMCutting Direction|Material Application|Steel; Stainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hard MaterialUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3780Width (mm - 2 Decimals)|9.60Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6181System Of Measurement|
