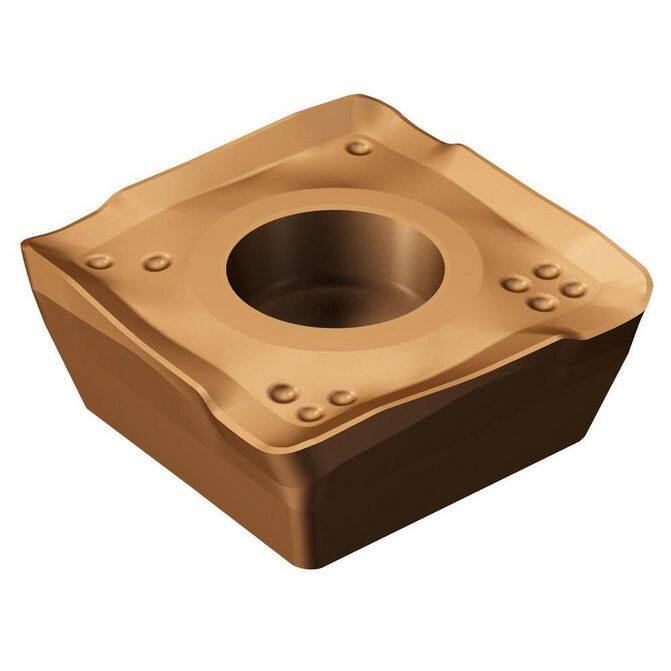

Manufacturer Part Number: 5854747|Insert Style|490Insert Size|14Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|1020Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1535Thickness (mm)|3.90Coating/Finish|TiAlNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.3937Maximum Depth of Cut (mm)|10.00Insert Size Code|140408Material Grade|K05Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5433Inscribed Circle (mm)|13.80Thickness Range (Decimal Inch)|0.1500 to 0.1750Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.5100 to 0.6000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|490Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|0.16Hole Diameter (Decimal Inch)|0.1614Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Cast IronPrimary Workpiece Material Code|KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|490R-140408M-PL 1020Iso Code|490R-140408M-PL 1020Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|26Cutting Edge Style|Corner RoundedManufacturers Catalog Number|490R-140408M-PL 1020Cutter Series Compatibility|490Chip Breaker|PLCutting Direction|Material Application|Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|10.30Width (Decimal Inch - 4 Decimals)|0.5433Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5433System Of Measurement|
