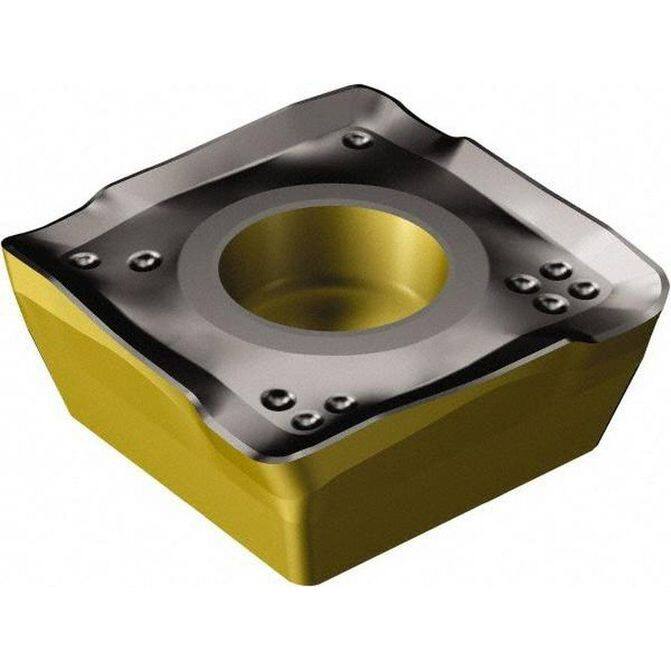

Manufacturer Part Number: 7564355|Insert Style|490Insert Size|14Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|4340Corner Radius (Decimal Inch)|0.0630Corner Radius (mm)|1.60Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1535Thickness (mm)|3.90Coating/Finish|TiCN; Al2O3; TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.3937Maximum Depth of Cut (mm)|Insert Size Code|140416Material Grade|P40; M40; K40Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5433Inscribed Circle (mm)|13.80Thickness Range (Decimal Inch)|0.1500 to 0.1750Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.5100 to 0.6000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|490Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1614Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast IronPrimary Workpiece Material Code|P; M; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|490R-140416M-PM 4340Iso Code|490R-140416M-PM 4340Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|23Cutting Edge Style|Corner RoundedManufacturers Catalog Number|490R-140416M-PM 4340Cutter Series Compatibility|490Chip Breaker|PMCutting Direction|Material Application|Steel; Stainless Steel; Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5433Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5433System Of Measurement|
