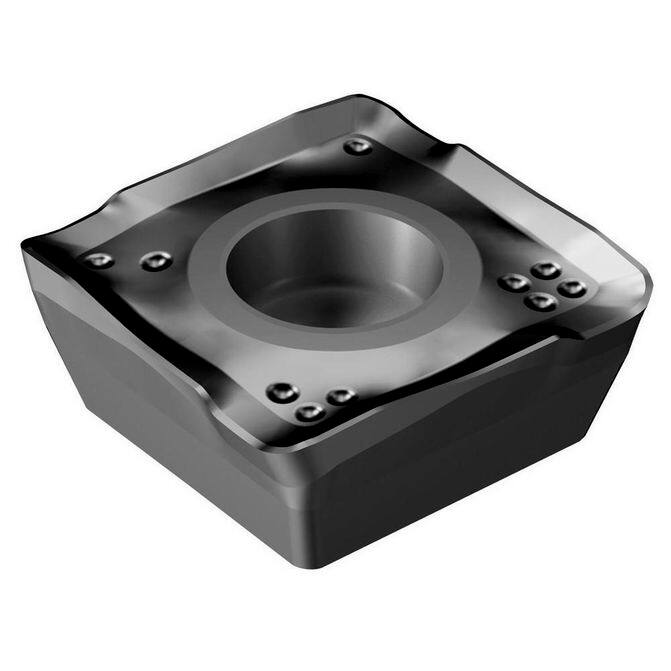

Manufacturer Part Number: 5853557|Insert Style|490Insert Size|08Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|S30TCorner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1299Thickness (mm)|3.30Coating/Finish|TiAlNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.2165Maximum Depth of Cut (mm)|5.50Insert Size Code|08T308Material Grade|M25; S25Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3346Inscribed Circle (mm)|8.50Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.3000 to 0.3500Length Range (Decimal Inch)|0.3200 to 0.4000Insert Hand|Right HandSeries|490Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|0.11Hole Diameter (Decimal Inch)|0.1102Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|490R-08T308E-ML S30TIso Code|490R-08T308E-ML S30TStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|32Cutting Edge Style|Corner RoundedManufacturers Catalog Number|490R-08T308E-ML S30TCutter Series Compatibility|490Chip Breaker|MLCutting Direction|Material Application|Stainless Steel; Superalloys & TitaniumUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|5.60Width (Decimal Inch - 4 Decimals)|0.3346Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.3346System Of Measurement|
