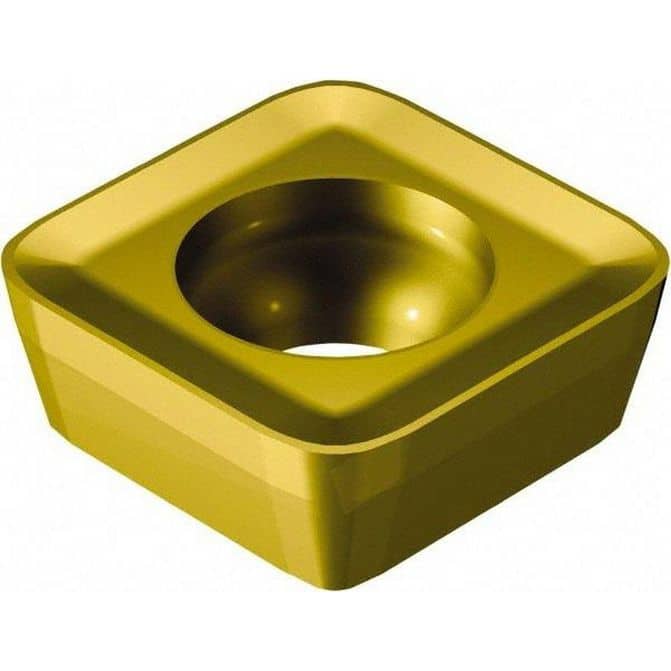

Manufacturer Part Number: 5853542|Insert Style|R210Insert Size|09Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|S40TCorner Radius (Decimal Inch)|0.0551Corner Radius (mm)|1.40Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1772Thickness (mm)|4.50Coating/Finish|TiCrN; Al2O3; TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.0472Maximum Depth of Cut (mm)|1.00Insert Size Code|090414Material Grade|M40; S35Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3740Inscribed Circle (mm)|9.50Thickness Range (Decimal Inch)|0.1750 to 0.1850Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.3200 to 0.4000Insert Hand|NeutralSeries|R210Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|0.17Hole Diameter (Decimal Inch)|0.1654Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|R210-09 04 14E-PM S40TIso Code|R210-09 04 14E-PM S40TStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|10Cutting Edge Style|Corner RoundedManufacturers Catalog Number|R210-09 04 14E-PM S40TCutter Series Compatibility|R210Chip Breaker|PMCutting Direction|Material Application|Stainless Steel; Superalloys & TitaniumUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|5.77Width (Decimal Inch - 4 Decimals)|0.3740Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.3740System Of Measurement|
