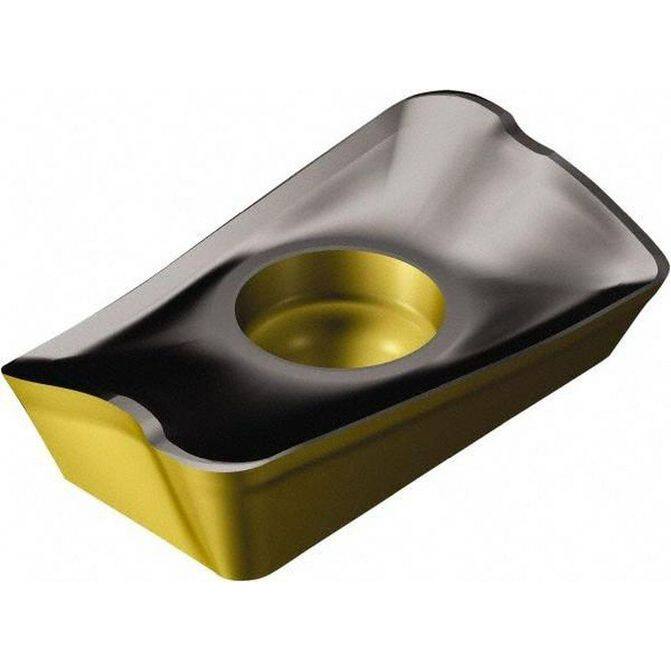

Manufacturer Part Number: 7564381|Insert Style|R390Insert Size|17Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|4330Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1875Thickness (mm)|Coating/Finish|TiCN; Al2O3; TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.6299Maximum Depth of Cut (mm)|Insert Size Code|170408Material Grade|P30; M30; K30Width (Inch)|Length (Inch)|Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.3780Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|Right HandSeries|R390Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1614Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|R390-17 04 08M-PM 4330Iso Code|R390-17 04 08M-PM 4330Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|17Cutting Edge Style|Corner RoundedManufacturers Catalog Number|R390-17 04 08M-PM 4330Cutter Series Compatibility|R390Chip Breaker|PMCutting Direction|Material Application|Steel; Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3780Width (mm - 2 Decimals)|9.60Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6181System Of Measurement|
