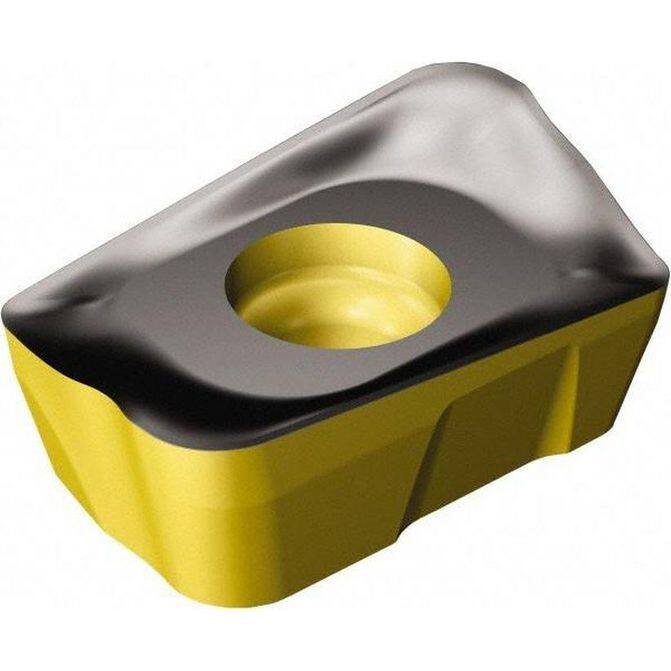

Manufacturer Part Number: 7564397|Insert Style|R390Insert Size|18Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|4340Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.2492Thickness (mm)|6.33Coating/Finish|TiCN; Al2O3; TiNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.6299Maximum Depth of Cut (mm)|Insert Size Code|180608Material Grade|P40; M40; K40Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4331Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.2350 to 0.2500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.6000 to 0.6500Insert Hand|Right HandSeries|R390Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1634Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast IronPrimary Workpiece Material Code|P; M; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|R390-18 06 08H-PL 4340Iso Code|R390-18 06 08H-PL 4340Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|3Cutting Edge Style|Corner RoundedManufacturers Catalog Number|R390-18 06 08H-PL 4340Cutter Series Compatibility|M-40; R390Chip Breaker|PLCutting Direction|Material Application|Steel; Stainless Steel; Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.4331Width (mm - 2 Decimals)|11.00Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.6063System Of Measurement|
