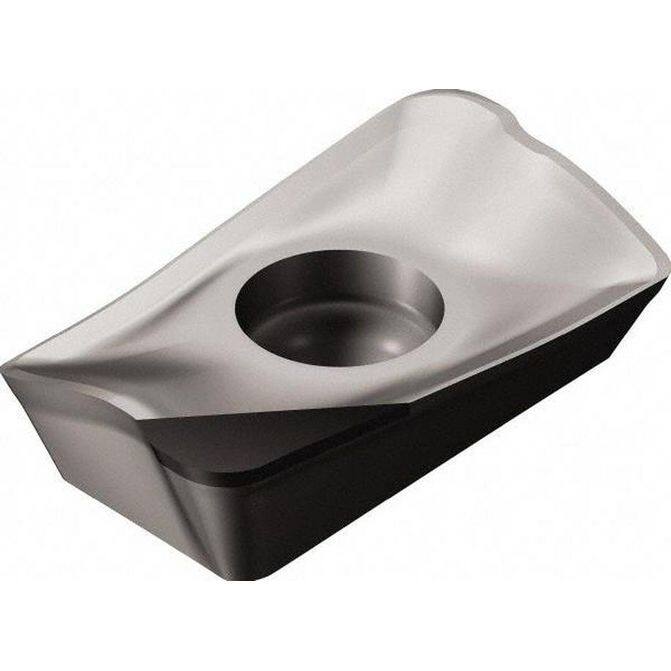

Manufacturer Part Number: 5745449|Insert Style|R390Insert Size|11Insert Material|Diamond TippedInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|CD10Corner Radius (Decimal Inch)|0.0157Corner Radius (mm)|0.40Number Of Cutting Edges|1Thickness (Decimal Inch - 4 Decimals)|0.1413Thickness (mm)|3.59Coating/Finish|Bright/UncoatedRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.1575Maximum Depth of Cut (mm)|4.00Insert Size Code|11T304Material Grade|N05Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2677Inscribed Circle (mm)|6.80Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|1/64Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.0000 to 0.3200Insert Hand|Right HandSeries|R390Coating Process|UncoatedHole Diameter (Mm) ( - 0 Decimals)|0.11Hole Diameter (Decimal Inch)|0.1102Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|R390-11T304E-P4-NL CD10Iso Code|R390-11T304E-P4-NL CD10Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Corner RoundedManufacturers Catalog Number|R390-11T304E-P4-NL CD10Cutter Series Compatibility|M-32; R390Chip Breaker|NLCutting Direction|Material Application|Non-Ferrous MetalUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|UncoatedSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|4.00Width (Decimal Inch - 4 Decimals)|0.2677Width (mm - 2 Decimals)|6.80Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.1575System Of Measurement|
