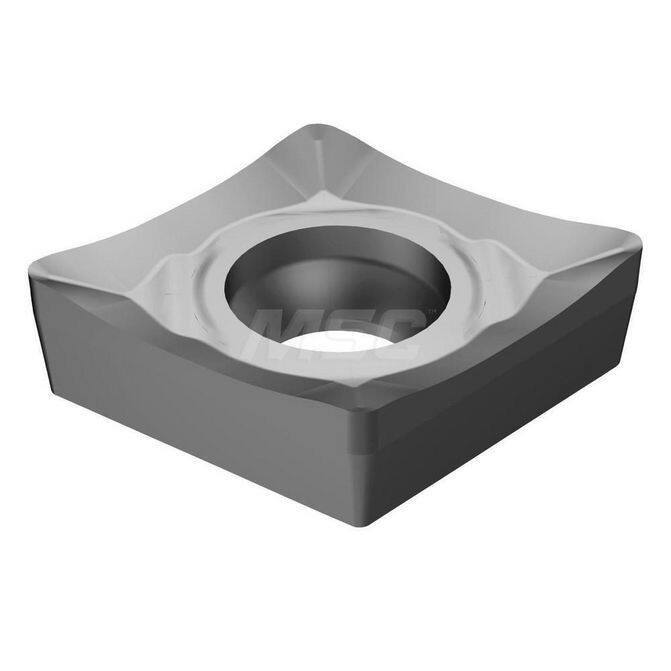

Manufacturer Part Number: 5723239|Relief Angle|7Corner Radius (mm)|0.40Corner Radius (Inch)|1/64Corner Radius (Decimal Inch)|0.0156Included Angle|80Manufacturer Grade|H10Coating/Finish|DiamondWiper Edge|NoInsert Hand|NeutralInsert Thickness|3.97Insert Thickness (Inch)|5/32Insert Thickness (Decimal Inch)|0.1563Series|CoroTurn 107Inscribed Circle (Inch)|3/8Inscribed Circle (Decimal Inch)|0.3750Inscribed Circle (mm)|Insert Material|CarbideInsert Shape|DiamondChipbreaker Operation|Grade Characteristics|Number Of Cutting Edges|2Insert Shape Code|CSingle Or Double End|Hole Diameter (Decimal Inch)|0.1563Hole Diameter (Mm) ( - 0 Decimals)|4.40Maximum Depth of Cut (mm)|9.27Maximum Depth of Cut (Decimal Inch)|0.3650Maximum Depth of Cut (Fractional Inch)|Insert Holding Method|ScrewWidth (Inch)|Clearance Code|CTolerance Code|GCoating Process|UncoatedLength Range (Decimal Inch)|0.3000 - 0.4000Rake|Insert Length (mm)|9.27Insert Length (Decimal Inch)|0.3650Insert Length (Inch)|Primary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Superalloy; TitaniumSecondary Workpiece Material Code|SAnsi Code|Iso Code|CCGX 09 T3 04-AL H10Standards|Manufacturers Catalog Number|CCGX 09 T3 04-AL H10Cutting Direction|Material Grade|Single or Multi Tipped|Stocking Category|Proprietary Coating Designation|Lead Angle|Coating Classification|Chip Breaker|ALRake Angle|Cutting Edge Style|Style|Industry Standard Number|Width (Decimal Inch - 4 Decimals)|Width (mm - 2 Decimals)|9.27Multi-Use Tool|YesFull Radius|YesMulti-Use Application|TurningTip Length (Decimal Inch)|Tip Length (mm)|ANSI Size Code|ISO Size Code|System Of Measurement|Product Service Code|UNSPSC Code|23242105Insert Style|CCGXInsert Size Code|32.51
