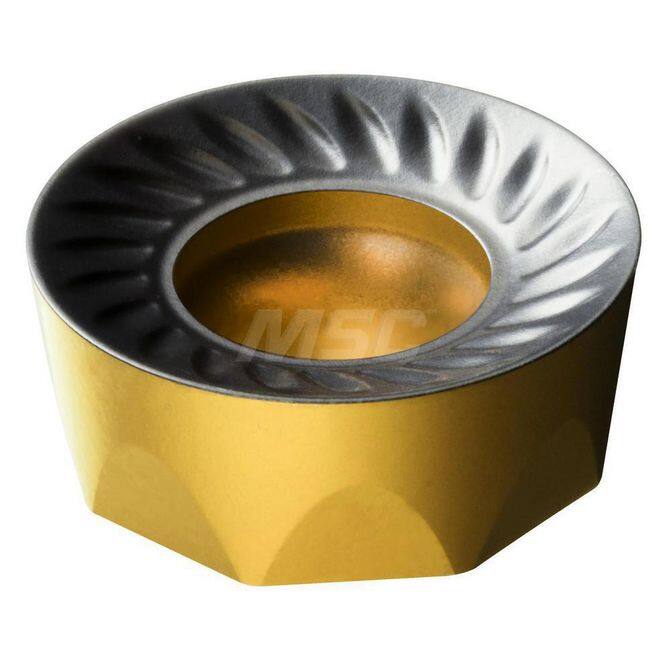

Manufacturer Part Number: 5740402|Insert Style|RCKTInsert Size|13Insert Material|Solid CarbideInsert Shape|RoundInscribed Circle (Inch)|1/2Manufacturer Grade|4220Corner Radius (Decimal Inch)|0.2500Corner Radius (mm)|6.35Number Of Cutting Edges|8Thickness (Decimal Inch - 4 Decimals)|0.1875Thickness (mm)|4.76Coating/Finish|TiCN; Al2O3; TiNRelief Angle|7.00Maximum Depth of Cut (Decimal Inch)|0.0732Maximum Depth of Cut (mm)|1.86Insert Size Code|130400Material Grade|P20; H25Width (Inch)|1/2Length (Inch)|1/2Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.5000Inscribed Circle (mm)|12.70Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/4Inscribed Circle Range (Decimal Inch)|0.5000 to 0.5100Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|RCKTCoating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|0.16Hole Diameter (Decimal Inch)|0.1575Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Cast Iron; Hard MaterialPrimary Workpiece Material Code|P; K; HSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|RCKT 13 04 00-PM 4220Iso Code|RCKT 13 04 00-PM 4220Standards|ANSI; ISOConvex Radius (Decimal Inch)|0.2500Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|RoundedManufacturers Catalog Number|RCKT 13 04 00-PM 4220Cutter Series Compatibility|N331.32; R331.32; RA200Chip Breaker|PMCutting Direction|Material Application|Steel; Cast Iron; Hard MaterialUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|360Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5000Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5000System Of Measurement|
