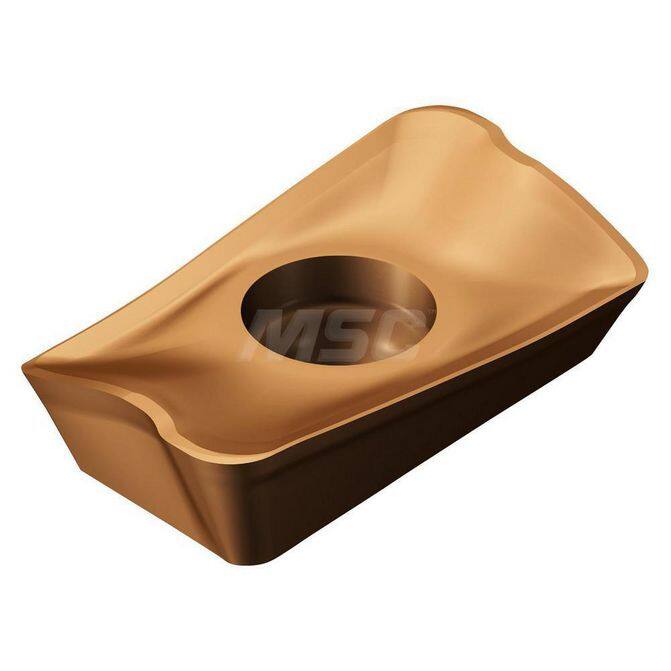

Manufacturer Part Number: 5853466|Insert Style|R390Insert Size|11Insert Material|Solid CarbideInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|S30TCorner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|2Thickness (Decimal Inch - 4 Decimals)|0.1413Thickness (mm)|3.59Coating/Finish|TiAlNRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.3937Maximum Depth of Cut (mm)|10.00Insert Size Code|11T308Material Grade|M25; S25Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.2677Inscribed Circle (mm)|6.80Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.2500 to 0.3000Length Range (Decimal Inch)|0.3200 to 0.4000Insert Hand|Right HandSeries|R390Coating Process|PVDHole Diameter (Mm) ( - 0 Decimals)|0.11Hole Diameter (Decimal Inch)|0.1102Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Stainless Steel; Superalloys & TitaniumPrimary Workpiece Material Code|M; SSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|R390-11 T3 08E-ML S30TIso Code|R390-11 T3 08E-ML S30TStandards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|20Cutting Edge Style|Corner RoundedManufacturers Catalog Number|R390-11 T3 08E-ML S30TCutter Series Compatibility|M-32; R390Chip Breaker|MLCutting Direction|Material Application|Stainless Steel; Superalloys & TitaniumUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|PVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|10.00Width (Decimal Inch - 4 Decimals)|0.2677Width (mm - 2 Decimals)|6.80Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.3937System Of Measurement|
