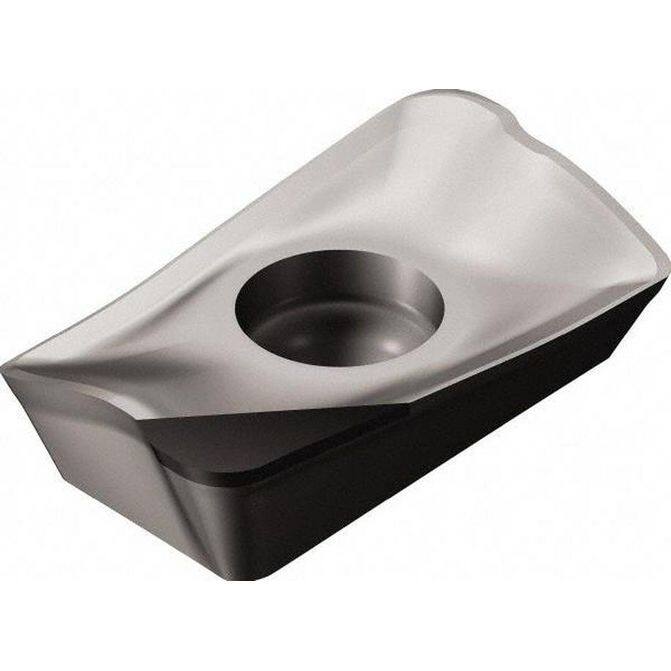

Manufacturer Part Number: 5745616|Insert Style|R390Insert Size|17Insert Material|Diamond TippedInsert Shape|ParallelogramInscribed Circle (Inch)|Manufacturer Grade|CD10Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|1Thickness (Decimal Inch - 4 Decimals)|0.1875Thickness (mm)|4.76Coating/Finish|Bright/UncoatedRelief Angle|Maximum Depth of Cut (Decimal Inch)|0.2362Maximum Depth of Cut (mm)|6.00Insert Size Code|170408Material Grade|N05Width (Inch)|Length (Inch)|Thickness (Inch)|3/16Inscribed Circle (Decimal Inch)|0.3780Inscribed Circle (mm)|9.60Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.0000 to 0.3200Insert Hand|Right HandSeries|R390Coating Process|UncoatedHole Diameter (Mm) ( - 0 Decimals)|0.16Hole Diameter (Decimal Inch)|0.1614Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Non-Ferrous MetalPrimary Workpiece Material Code|NSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|R390-170408E-P6-NL CD10Iso Code|R390-170408E-P6-NL CD10Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Corner RoundedManufacturers Catalog Number|R390-170408E-P6-NL CD10Cutter Series Compatibility|R390Chip Breaker|NLCutting Direction|Material Application|Non-Ferrous MetalUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|UncoatedSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|6.00Width (Decimal Inch - 4 Decimals)|0.3780Width (mm - 2 Decimals)|9.60Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.2362System Of Measurement|
