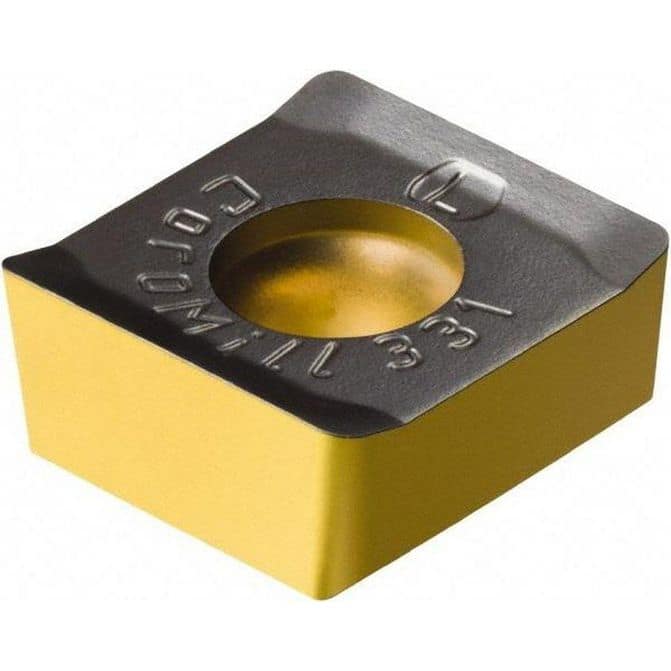

Manufacturer Part Number: 7564532|Insert Style|N331.1AInsert Size|04Insert Material|Solid CarbideInsert Shape|RectangleInscribed Circle (Inch)|Manufacturer Grade|4330Corner Radius (Decimal Inch)|0.0197Corner Radius (mm)|0.50Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1378Thickness (mm)|3.50Coating/Finish|TiCN; Al2O3; TiNRelief Angle|0.00Maximum Depth of Cut (Decimal Inch)|0.1811Maximum Depth of Cut (mm)|Insert Size Code|043505Material Grade|P30; M30; K30Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3740Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1250 to 0.1500Corner Radius (Inch)|Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.0000 to 0.3200Insert Hand|NeutralSeries|N331.1ACoating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1024Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|N331.1A-04 35 05H-PL4330Iso Code|N331.1A-04 35 05H-PL4330Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Corner RoundedManufacturers Catalog Number|N331.1A-04 35 05H-PL4330Cutter Series Compatibility|N331.32Chip Breaker|PLCutting Direction|Material Application|Steel; Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3740Width (mm - 2 Decimals)|9.50Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.1811System Of Measurement|Metric
