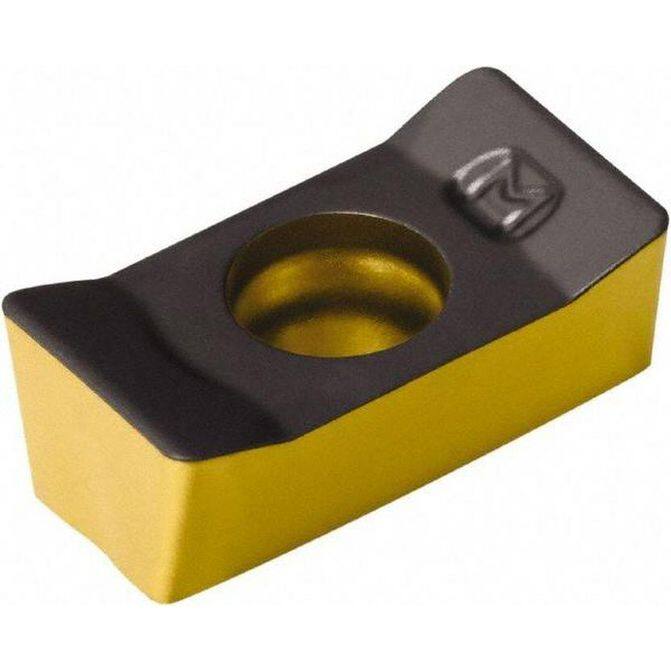

Manufacturer Part Number: 7564557|Insert Style|N331.1AInsert Size|08Insert Material|Solid CarbideInsert Shape|RectangleInscribed Circle (Inch)|Manufacturer Grade|4340Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1752Thickness (mm)|4.45Coating/Finish|TiCN; Al2O3; TiNRelief Angle|0.00Maximum Depth of Cut (Decimal Inch)|0.3031Maximum Depth of Cut (mm)|Insert Size Code|084508Material Grade|P40; M40; K40Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.3740Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1750 to 0.1850Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.3500 to 0.4000Length Range (Decimal Inch)|0.0000 to 0.3200Insert Hand|NeutralSeries|N331.1ACoating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1417Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast IronPrimary Workpiece Material Code|P; M; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|N331.1A-08 45 08M-PM4340Iso Code|N331.1A-08 45 08M-PM4340Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Corner RoundedManufacturers Catalog Number|N331.1A-08 45 08M-PM4340Cutter Series Compatibility|L331.52CChip Breaker|PMCutting Direction|Material Application|Steel; Stainless Steel; Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.3740Width (mm - 2 Decimals)|9.50Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.3031System Of Measurement|
