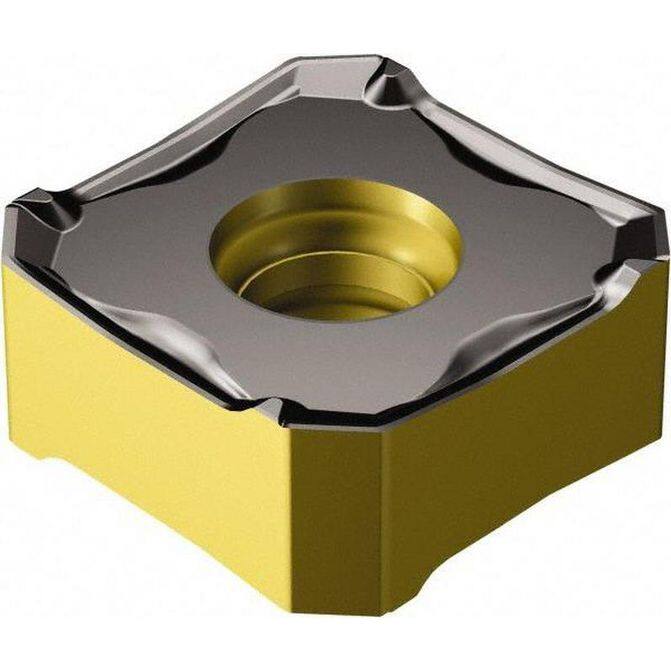

Manufacturer Part Number: 7564424|Insert Style|345Insert Size|13Insert Material|Solid CarbideInsert Shape|SquareInscribed Circle (Inch)|Manufacturer Grade|4330Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|8Thickness (Decimal Inch - 4 Decimals)|0.1988Thickness (mm)|5.05Coating/Finish|TiCN; Al2O3; TiNRelief Angle|0.00Maximum Depth of Cut (Decimal Inch)|0.2362Maximum Depth of Cut (mm)|Insert Size Code|1305Material Grade|P30; M30; K30Width (Inch)|Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.5118Inscribed Circle (mm)|13.00Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.5100 to 0.6000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|Right HandSeries|345Coating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1890Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|NegativePrimary Workpiece Material|Steel; Cast IronPrimary Workpiece Material Code|P; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|345R-1305M-PM 4330Iso Code|345R-1305M-PM 4330Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|24Cutting Edge Style|Corner RoundedManufacturers Catalog Number|345R-1305M-PM 4330Cutter Series Compatibility|345Chip Breaker|PMCutting Direction|Material Application|Steel; Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|DoubleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.5118Width (mm - 2 Decimals)|Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5118System Of Measurement|
