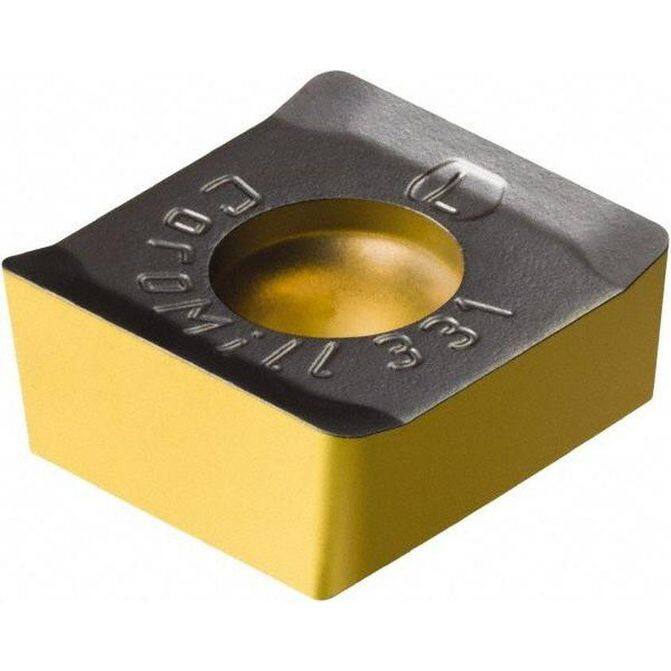

Manufacturer Part Number: 7564560|Insert Style|N331.1AInsert Size|14Insert Material|Solid CarbideInsert Shape|RectangleInscribed Circle (Inch)|29/64Manufacturer Grade|4340Corner Radius (Decimal Inch)|0.0315Corner Radius (mm)|0.80Number Of Cutting Edges|4Thickness (Decimal Inch - 4 Decimals)|0.1949Thickness (mm)|4.95Coating/Finish|TiCN; Al2O3; TiNRelief Angle|0.00Maximum Depth of Cut (Decimal Inch)|0.5394Maximum Depth of Cut (mm)|Insert Size Code|145008Material Grade|P40; M40; K40Width (Inch)|29/64Length (Inch)|Thickness (Inch)|Inscribed Circle (Decimal Inch)|0.4528Inscribed Circle (mm)|Thickness Range (Decimal Inch)|0.1850 to 0.2000Corner Radius (Inch)|1/32Inscribed Circle Range (Decimal Inch)|0.4000 to 0.5000Length Range (Decimal Inch)|0.5000 to 0.6000Insert Hand|NeutralSeries|N331.1ACoating Process|CVDHole Diameter (Mm) ( - 0 Decimals)|Hole Diameter (Decimal Inch)|0.1811Cutting Edge Effective Length (mm)|Cutting Edge Effective Length (Decimal Inch)|Rake|PositivePrimary Workpiece Material|Steel; Stainless Steel; Cast IronPrimary Workpiece Material Code|P; M; KSecondary Workpiece Material|Secondary Workpiece Material Code|Ansi Code|N331.1A-14 50 08H-PL4340Iso Code|N331.1A-14 50 08H-PL4340Standards|ANSI; ISOConvex Radius (Decimal Inch)|Concave Radius (Decimal Inch)|Rake Angle|Cutting Edge Style|Corner RoundedManufacturers Catalog Number|N331.1A-14 50 08H-PL4340Cutter Series Compatibility|N331.32Chip Breaker|PLCutting Direction|Material Application|Steel; Stainless Steel; Cast IronUNSPSC Code|23291601Shape|Length of Cut (mm)|Insert Holding Method|ScrewProduct Service Code|Coating Classification|CVDSingle or Double Sided Insert|SingleIncluded Angle Degree|90Length (mm)|Width (Decimal Inch - 4 Decimals)|0.4528Width (mm - 2 Decimals)|11.50Multi-Use Tool|YesLength (Decimal Inch - 4 Decimals)|0.5394System Of Measurement|
